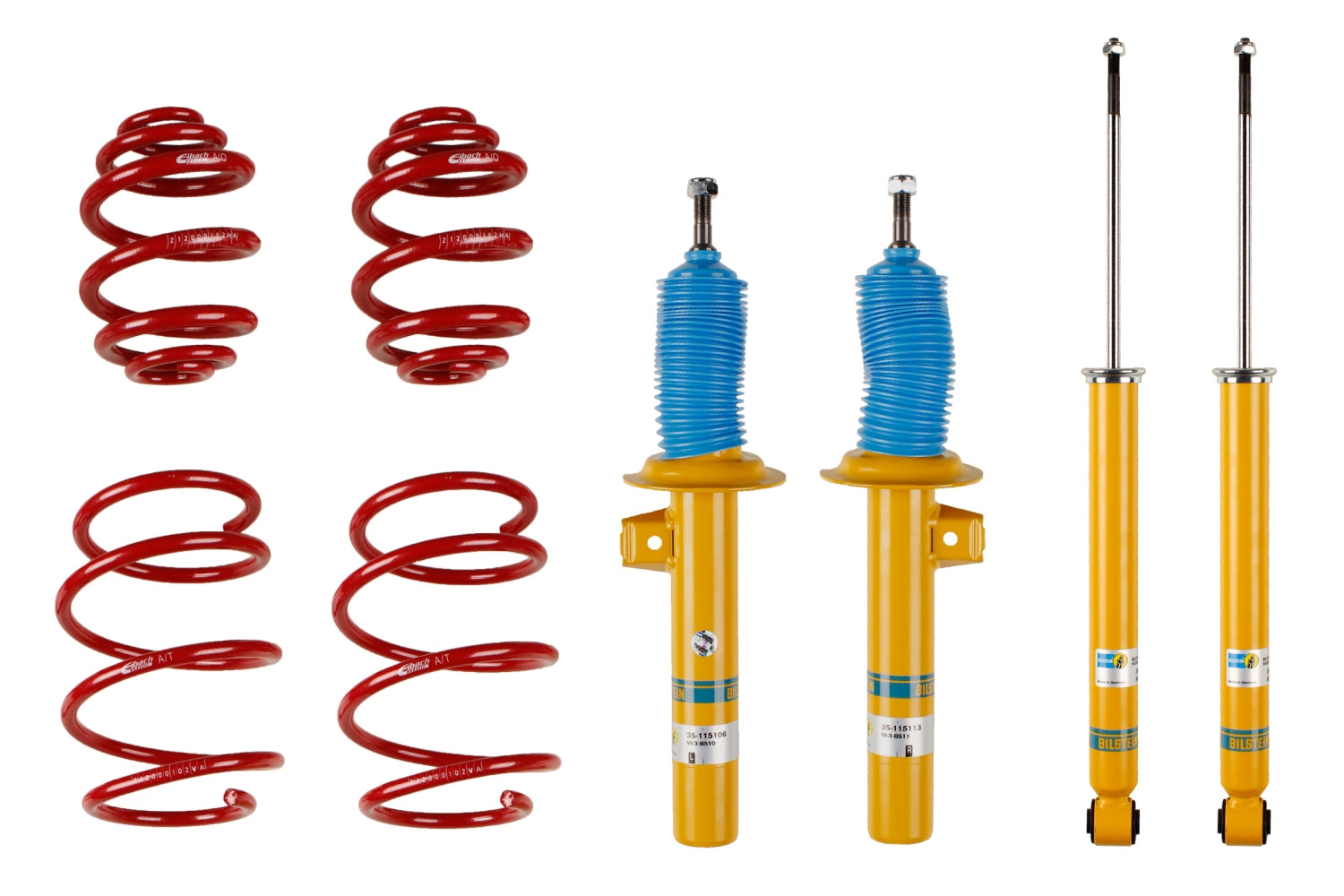

Bilstein B12 Sportline 46-180124 combines matched Bilstein dampers and Eibach Sportline springs for the vehicle applications below. It provides fixed lowering. Check the engine, transmission, original suspension and axle ratings for the relevant application.
Vehicle applications and specifications
BMW 3 Series Compact (E46)
325 ti 04/01–12/04 141kW
- Front lowering: approximately 30-35 mm
- Rear lowering: approximately 15 mm
- Maximum front axle rating: 935 kg
- Maximum rear axle rating: 1,190 kg
- Follow the approval document and installation instructions for this exact part number.
- Manual transmission only.
- Without self-levelling suspension.
BMW 3 Series Compact (E46)
318 td, 320 td 09/01–02/05 85–110kW
- Front lowering: approximately 30-35 mm
- Rear lowering: approximately 15 mm
- Maximum front axle rating: 935 kg
- Maximum rear axle rating: 1,190 kg
- Follow the approval document and installation instructions for this exact part number.
- Without self-levelling suspension.
Lowering figures are approximate and depend on the original suspension and equipment. Compare axle ratings with the vehicle identification plate.
Installation
Follow the fitting documents for this exact part number. Confirm which original mounting components are retained, check clearances and have wheel alignment checked after installation.
Ordering from GSM Performance
This kit is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and original suspension details if you would like help checking the application.
Ordered from supplier. Contact GSM Performance for the current lead time.
Have you written anything about this car?
Yes: The Best Coilovers For Your BMW E46 3 Series And M3 compares every kit we list for the car, from lowering springs up to 3-way coilovers, with what each one is for.
Will this fit my car?
This listing is for the BMW 3 Series Compact (E46). Chassis code, model year, engine and drivetrain all matter, and Bilstein often use different part numbers for cars that look the same, so check your car against the vehicle table in the description. It is rated for a maximum front axle load of 935 kg and rear of 1190 kg. Compare those with the permitted axle weights on your car's identification plate, not its unladen weight. If anything is unclear, send us your registration or VIN and we will check it before you order.
How much lower will it sit?
About 30 to 35 mm at the front and 15 mm at the rear. That is the catalogue figure: the real drop varies with the car's original suspension and equipment, and a car already on factory sports or lowered suspension drops less.
Do I need new dampers?

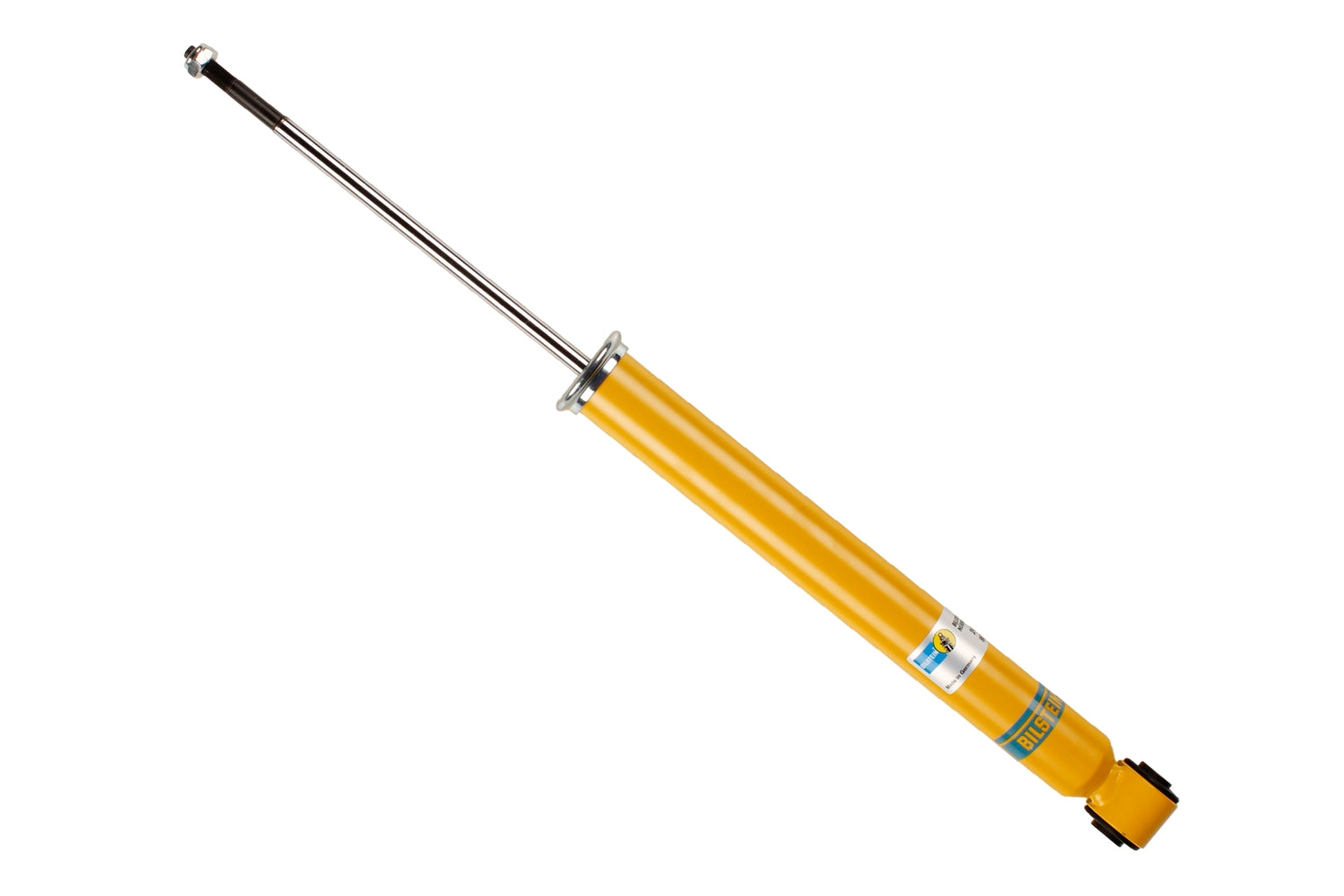

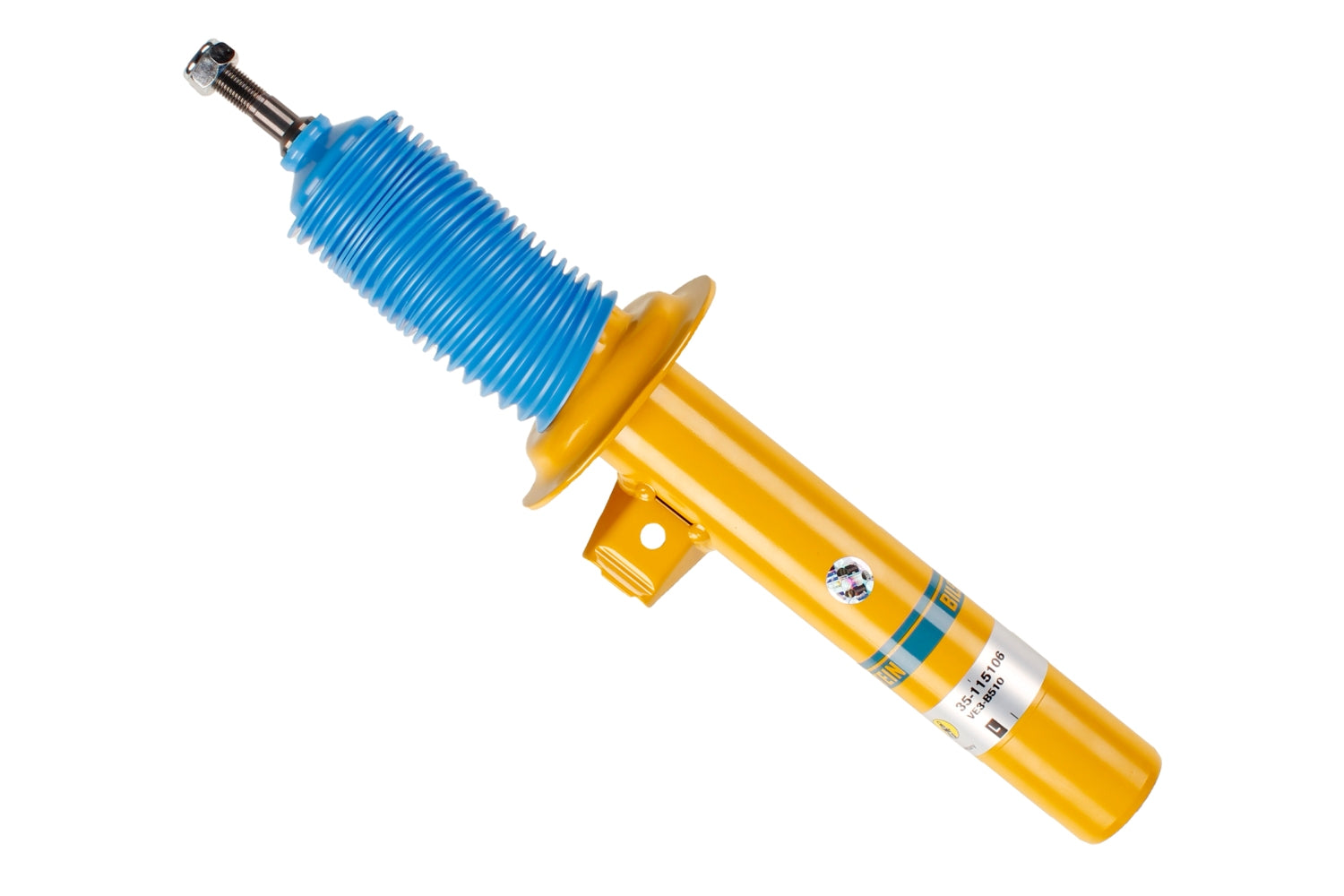

No. The B12 Sportline is Bilstein dampers with matched Eibach springs, front and rear.
Can I adjust the height later?
No, it is a fixed drop. If you want to set the height yourself, you need a height adjustable coilover instead. Our guide Bilstein B12, B14 or B16: Which Suspension Adjustment Do You Need? explains the difference.
Can I fit it myself?
Our guide Fitting Coilovers At Home Or Having Them Done covers what the job involves. Either way, have the wheel alignment checked after fitting.
How long does it take?
This kit is ordered in from the supplier for your car. Ask us for the current lead time before you book the fitting.
