Bilstein B14 47-080478 is a height-adjustable coilover kit for the vehicle applications below. Fixed damping; no damping-adjustment dial. Check the engine, transmission, original suspension and axle ratings for the relevant application.
Vehicle applications and specifications
Audi TT (8N3)
1.8 T 10/98–06/06 110– 140kW
- Front lowering: approximately 30-50 mm
- Rear lowering: approximately 30-50 mm
- Maximum front axle rating: 1,040 kg
- Maximum rear axle rating: 825 kg
- Set the threaded height adjusters within the permitted range.
- Follow the approval document and installation instructions for this exact part number.
Audi TT Roadster (8N9)
1.8 T 10/99–06/06 110– 140kW
- Front lowering: approximately 30-50 mm
- Rear lowering: approximately 30-50 mm
- Maximum front axle rating: 1,040 kg
- Maximum rear axle rating: 825 kg
- Set the threaded height adjusters within the permitted range.
- Follow the approval document and installation instructions for this exact part number.
SEAT Leon (1M1)
1.8 T Cupra R 02/02–06/06 154– 165kW
- Front lowering: approximately 10-30 mm
- Rear lowering: approximately 25-55 mm
- Maximum front axle rating: 1,040 kg
- Maximum rear axle rating: 825 kg
- Set the threaded height adjusters within the permitted range.
- Follow the approval document and installation instructions for this exact part number.
Lowering figures are approximate and depend on the original suspension and equipment. Compare axle ratings with the vehicle identification plate.
Installation
Follow the fitting documents for this exact part number. Keep height adjustment within the approved range, confirm which original mounting components are retained, check clearances and have wheel alignment checked after installation.
Ordering from GSM Performance
This kit is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and original suspension details if you would like help checking the application.
Ordered from supplier. Contact GSM Performance for the current lead time.
Will this fit my car?
This listing is for the Audi TT 8N / SEAT Leon Cupra R 1M. Chassis code, model year, engine and drivetrain all matter, and Bilstein often use different part numbers for cars that look the same, so check your car against the vehicle table in the description. If anything is unclear, send us your registration or VIN and we will check it before you order.
What can I adjust?
The ride height is adjustable on the threaded body.
What comes in the kit?

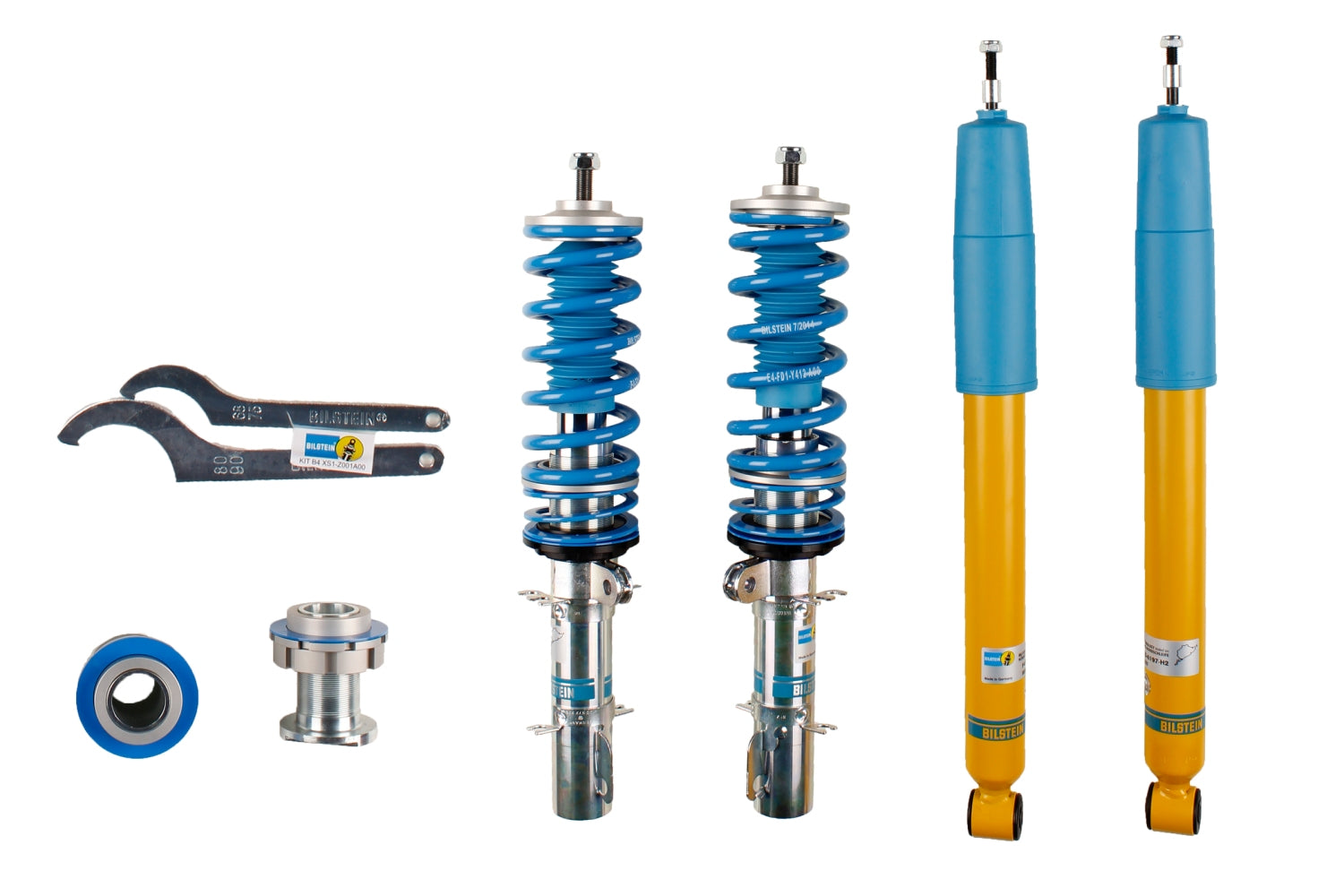

Coilovers front and rear.
Is it right for road or track?
It depends how much of your driving is on track. Our guide Fast Road Or Track: Choosing The Damping On A Set Of Coilovers explains what 1-way, 2-way and 3-way adjustment gets you. For the Bilstein range, see Bilstein B12, B14 or B16: Which Suspension Adjustment Do You Need?.
Can I fit it myself?
Our guide Fitting Coilovers At Home Or Having Them Done covers what the job involves. Either way, have the wheel alignment checked after fitting and check wheel and tyre clearance through full steering lock and suspension travel.
How long does it take?
This kit is ordered in from the supplier for your car. Ask us for the current lead time before you book the fitting.
More about this kit.
What lead time is listed for 47-080478?
The catalogue lead time for 47-080478 is: Contact us for current lead time. This is an ordering estimate, not a guaranteed delivery date. Confirm current availability and timing with us before relying on it.
What ride-height information is listed for 47-080478?
For 47-080478, the catalogue gives: “Front lowering approximately 10-30 mm / rear approximately 25-55 mm / Front lowering approximately 30-50 mm / rear approximately 30-50 mm”. Use any front and rear figures with their listed vehicle and fitting conditions. Ask the installer to check the finished clearances and alignment.
Bilstein suspension: allow 3 to 5 weeks
Allow 3 to 5 weeks from your order for your Bilstein suspension to reach you.
Need it by a particular date? Write the date in the order comments box at checkout when you order.
