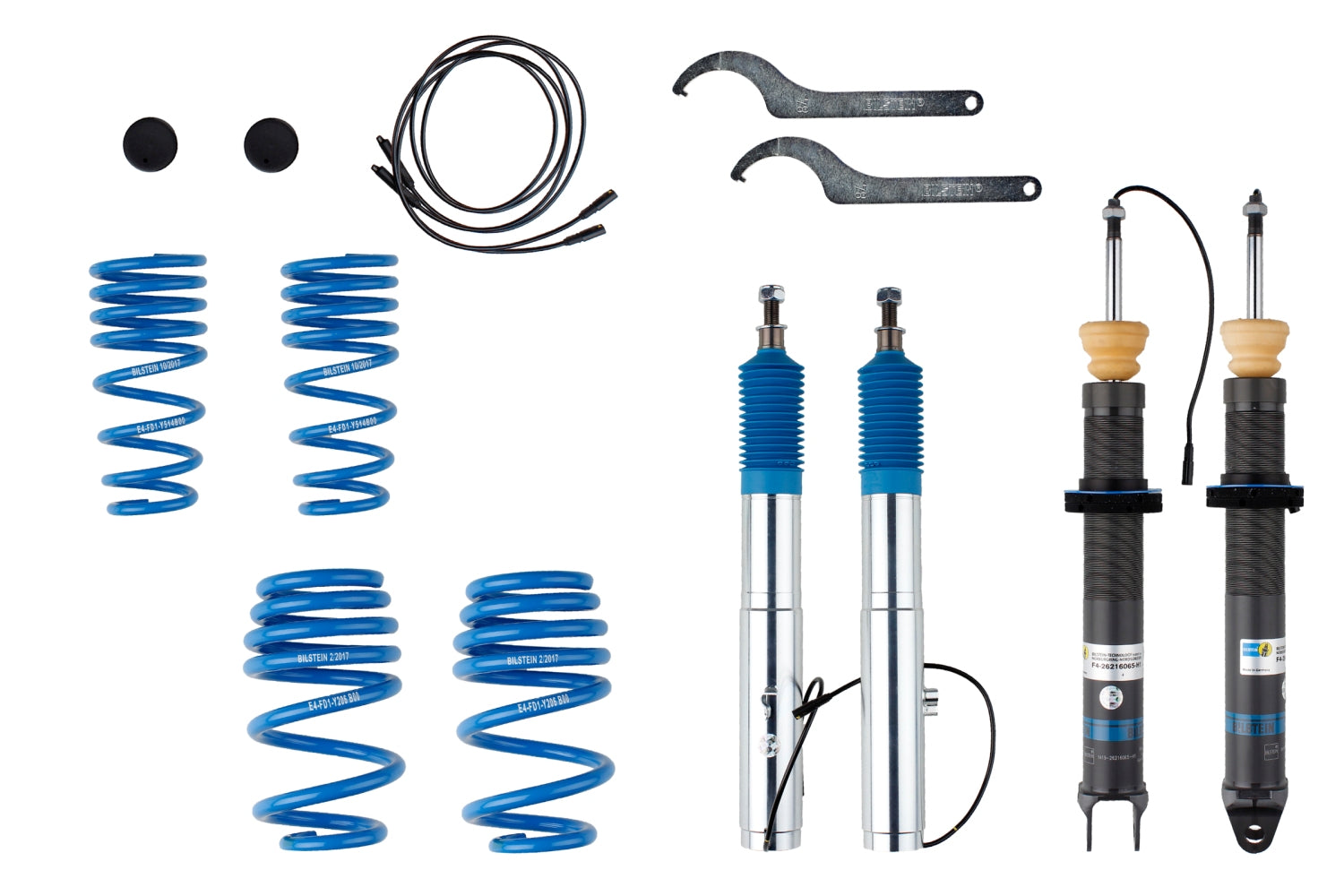

Bilstein B16 DampTronic part 49-279047 is listed for the vehicle variants in the application table below. Match your chassis, engine, factory suspension and axle ratings to the relevant row before ordering.
This B16 DampTronic version is intended for the specified electronically controlled suspension applications. Check the original electronic damping system and all application notes; it must not be treated as a conventional manually adjusted B16 kit.
Application and lowering table
PORSCHE 911 (991)
3.0 Carrera, 3.0 Carrera 4, 3.0 Carrera T, 3.0 Carrera S, 3.0 Carrera 4S, 3.0 Carrera GTS, 3.0 Carrera 4 GTS, 3.8 Turbo, 3.8 Turbo S 11/15– 272– 446kW
- Front lowering: 40 mm
- Rear lowering: 25-40 mm
Fitment conditions and axle ratings: with PASM; with electronic suspension control; Built-in adjustable; for PR number: 474 FA: Lowering ca. [mm]: 40 mm; Axle load [kg] to 825 kg; with leveling control RA: Lowering ca. [mm]: 25-40 mm; Axle load [kg] to 1260 kg
PORSCHE 911 Convertible (991)
3.0 Carrera, 3.0 Carrera 4, 3.0 Carrera S, 3.0 Carrera 4S, 3.0 Carrera GTS, 3.0 Carrera 4 GTS, 3.4 Carrera, 3.4 Carrera 4, 3.6 Carrera, 3.8 Carrera S, 3.8 Carrera 4S, 3.8 Carrera S / GTS, 3.8 Carrera 4S / 4 GTS, 3.8 Turbo, 3.8 Turbo S 03/12–12/13 257– 427kW
- Front lowering: 30 mm
- Rear lowering: 25-40 mm
Fitment conditions and axle ratings: with PASM; with electronic suspension control; Built-in adjustable; for PR number: 474 FA: Lowering ca. [mm]: 30 mm; Axle load [kg] to 825 kg; with leveling control RA: Lowering ca. [mm]: 25-40 mm; Axle load [kg] to 1260 kg
PORSCHE 911 Targa (991)
3.0 Carrera 4, 3.0 Carrera 4S, 3.0 Carrera 4 GTS 11/15– 272– 331kW
- Front lowering: 30 mm
- Rear lowering: 25-40 mm
Fitment conditions and axle ratings: with PASM; with electronic suspension control; Built-in adjustable; for PR number: 474 FA: Lowering ca. [mm]: 30 mm; Axle load [kg] to 825 kg; with leveling control RA: Lowering ca. [mm]: 25-40 mm; Axle load [kg] to 1260 kg
*Approximate lowering relative to the original suspension specified in the relevant row. Factory sports suspension, axle load and vehicle equipment can change the resulting drop. When several rows apply to the same model, their conditions distinguish the permitted configuration; do not select a range by model name alone.
Before ordering
- Check the exact manufacturer part number: 49-279047.
- Check the permitted axle ratings on the vehicle identification plate wherever a limit is listed.
- Confirm electronic damping, drivetrain and original sports-suspension options against the table.
- Check any additional parts, exclusions and certificate conditions in the application notes.
Installation and adjustment
Follow the installation instructions and approval document supplied for this part number. Keep any adjustable spring seats within the specified range. Have wheel alignment checked after fitting and check affected headlamp or driver-assistance settings in accordance with the vehicle manufacturer’s instructions.
Ordering from GSM Performance
This part is ordered from our supplier. Contact us for the current lead time, particularly if you need it for a planned installation or event. Send your registration or VIN and original suspension details if you would like us to check the application.
