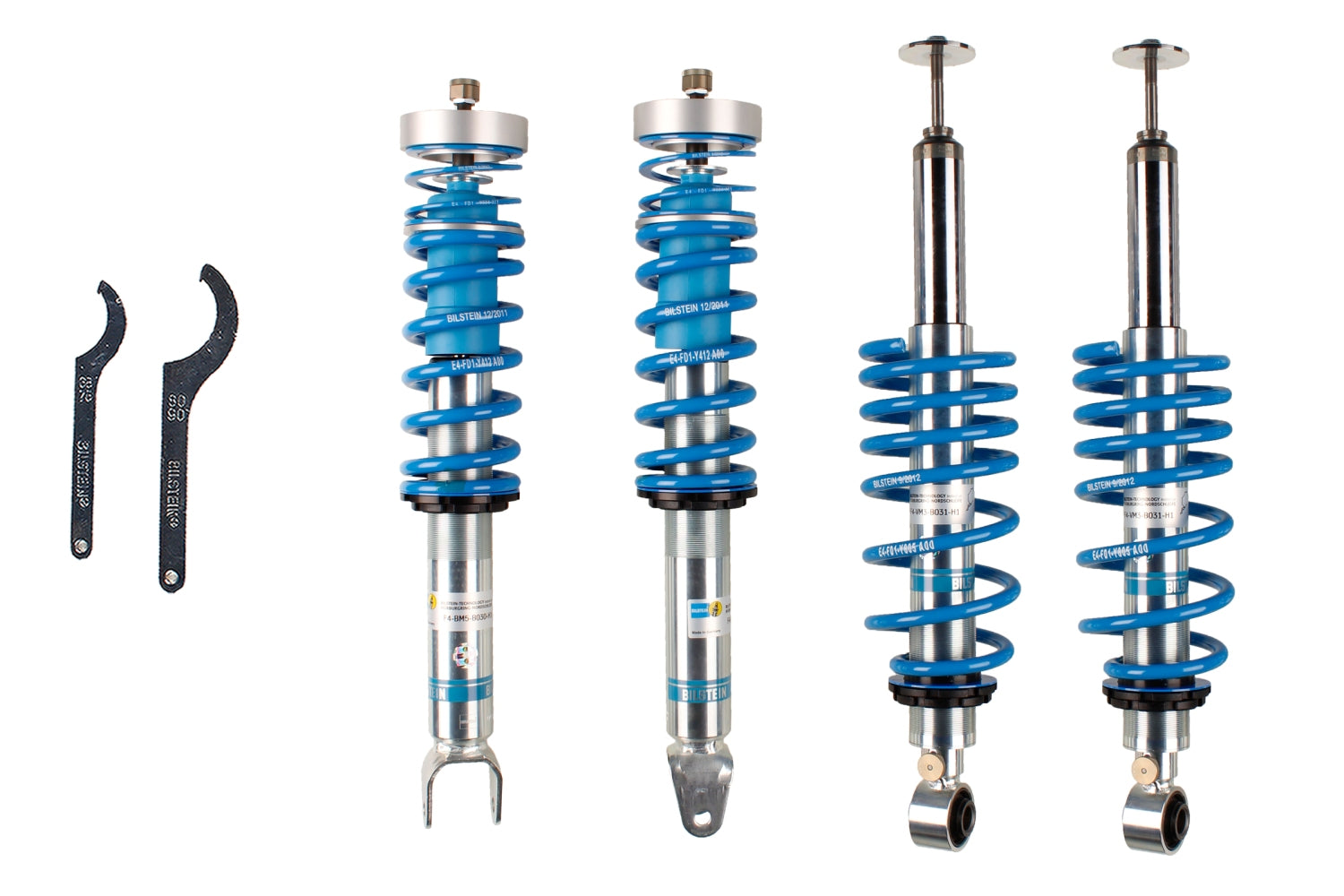

Bilstein B16 PSS9 48-110297 is a height-adjustable suspension kit for the application below. This PSS9 kit also provides manual damping adjustment.
Vehicle application
Mazda RX-8 (SE / FE; retailer designation SE17), 1.3-litre twin-rotor engine. Listed outputs: 141, 158, 170 and 177 kW. Manufacturer application span: October 2003 to June 2012.
Ride height and axle limits
- Front lowering: approximately 30-50 mm
- Rear lowering: approximately 30-50 mm
- Maximum front axle rating: 860 kg
- Maximum rear axle rating: 1,030 kg
Lowering is relative to the specified original suspension, not an absolute ground-clearance measurement. Check the vehicle identification plate and original suspension before ordering.
Fitting conditions
- Use the part-specific installation and approval documents. Check wheel and tyre clearance throughout the permitted adjustment range.
- Have wheel alignment checked after fitting.
Ordering from GSM Performance
This kit is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and original suspension details if you would like help confirming fitment.
Ordered from supplier. Contact GSM Performance for the current lead time.
Will this fit my car?
This listing is for the Mazda RX-8 (SE, FE). Chassis code, model year, engine and drivetrain all matter, and Bilstein often use different part numbers for cars that look the same, so check your car against the vehicle table in the description. If anything is unclear, send us your registration or VIN and we will check it before you order.
What can I adjust?
The ride height is adjustable on the threaded body, and Bilstein quote a lowering range of about 30 to 50 mm at the front and 30 to 50 mm at the rear. The damping has 9 settings you choose by hand.
Is it right for road or track?
It depends how much of your driving is on track. Our guide Fast Road Or Track: Choosing The Damping On A Set Of Coilovers explains what 1-way, 2-way and 3-way adjustment gets you. For the Bilstein range, see Bilstein B12, B14 or B16: Which Suspension Adjustment Do You Need?.
Can I fit it myself?
Our guide Fitting Coilovers At Home Or Having Them Done covers what the job involves. Either way, have the wheel alignment checked after fitting and check wheel and tyre clearance through full steering lock and suspension travel.
How long does it take?
This kit is ordered in from the supplier for your car. Ask us for the current lead time before you book the fitting.
More about this kit.
What lead time is listed for 48-110297?
The catalogue lead time for 48-110297 is: Contact us for current lead time. This is an ordering estimate, not a guaranteed delivery date. Confirm current availability and timing with us before relying on it.
What damping adjustment is listed for 48-110297?
The catalogue lists “Manual damping adjustment” for 48-110297. Use the instructions for the exact kit to identify and set its controls.
What ride-height information is listed for 48-110297?
For 48-110297, the catalogue gives: “Front approximately 30-50 mm / rear approximately 30-50 mm”. Use any front and rear figures with their listed vehicle and fitting conditions. Ask the installer to check the finished clearances and alignment.
Bilstein suspension: allow 3 to 5 weeks
Allow 3 to 5 weeks from your order for your Bilstein suspension to reach you.
Need it by a particular date? Write the date in the order comments box at checkout when you order.
