Eibach S90-1-08-002 is listed as Pro-Spacer in the supplied manufacturer catalogue. Match the vehicle, original equipment and fitting conditions below before ordering.
Vehicle applications and specification
Audi A3 05.03 -08.12
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 23
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A3 09.04 – 03.13
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 23
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A4 11.00 – 12.04
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 19
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A4 04.01 – 12.04
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 19
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A4 11.04 – 06.08
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 19
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A4 11.04 – 06.08
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 19
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A4 04.02 – 03.09
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 27
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A6 01.97 – 01.05
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 10
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A6 11.97 – 01.05
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 10
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A6 05.00 – 08.05
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 1
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A8 03.94 – 12.02
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 27
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Audi A8 10.02 – 07.10
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 25
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Skoda OCTAVIA 02.04 – 06.13
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 22
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Skoda OCTAVIA 02.04 – 06.13
- Catalogue certificate code: T
- Total track widening (mm): 16
- Spacer system: 1
- Colour: Silver
- Original bolt reference (information only): M14x1,5×27, KU r=13
- Component stamping: 91108002
- Bolt pattern / number of holes: 112/5
- Centre bore: 57
- Thread: M14x1,5
- Offset limit: 22
- Catalogue note references: S11
- Fitting note S11: The centering of the wheel is only possible with the wheelbolts! Therefore, it can be necessary to do a wheel balancing on the car, to avoid possible vibrations.
Track widening is the total across the axle. Confirm the spacer thickness per wheel, fixing system, bolt engagement and wheel clearance against the exact kit instructions.
Check the manufacturer part number S90-1-08-002 and follow the fitting instructions for that exact part. Do not fit the product where the vehicle specification differs from the listed application or certificate conditions.

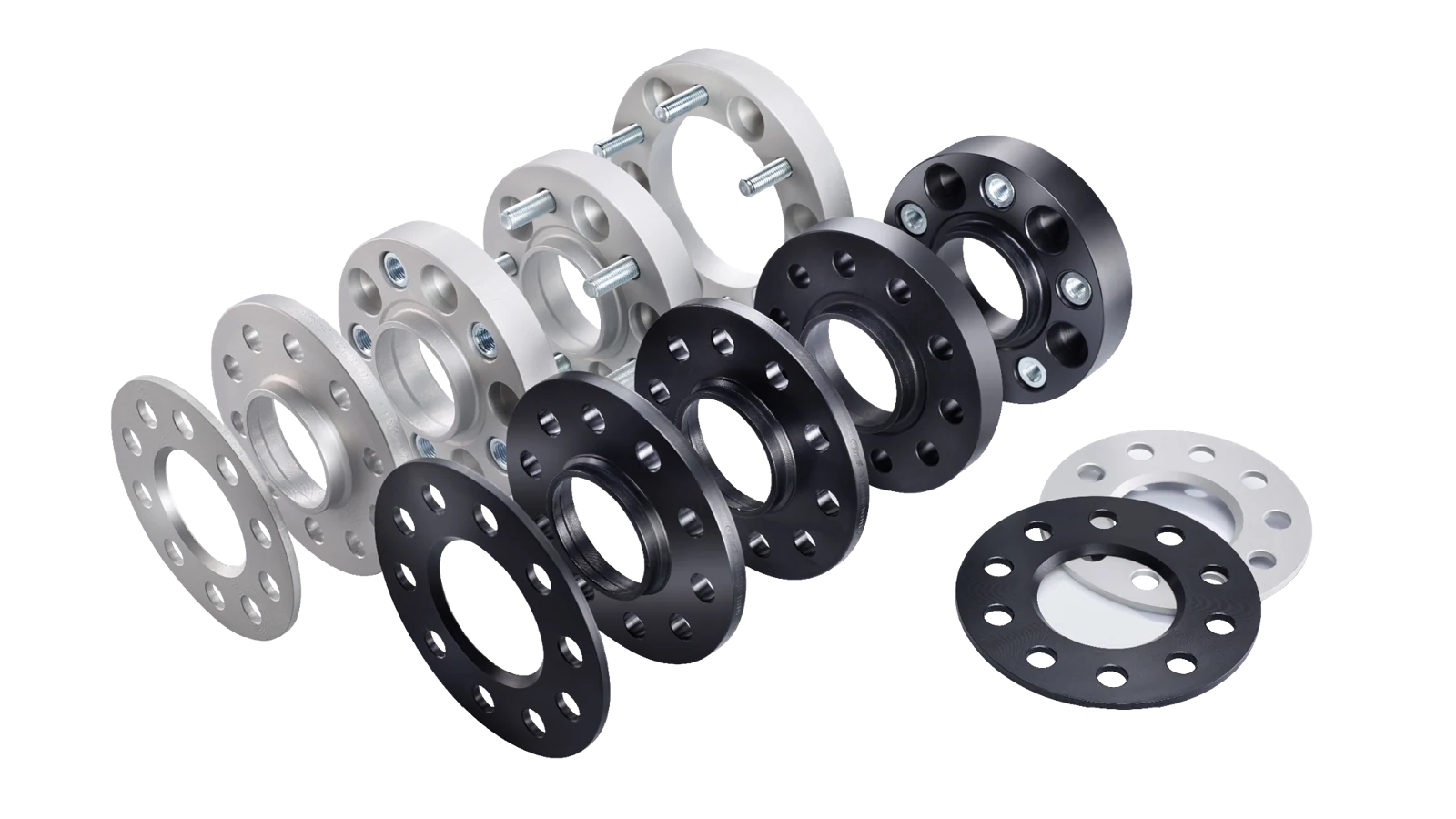

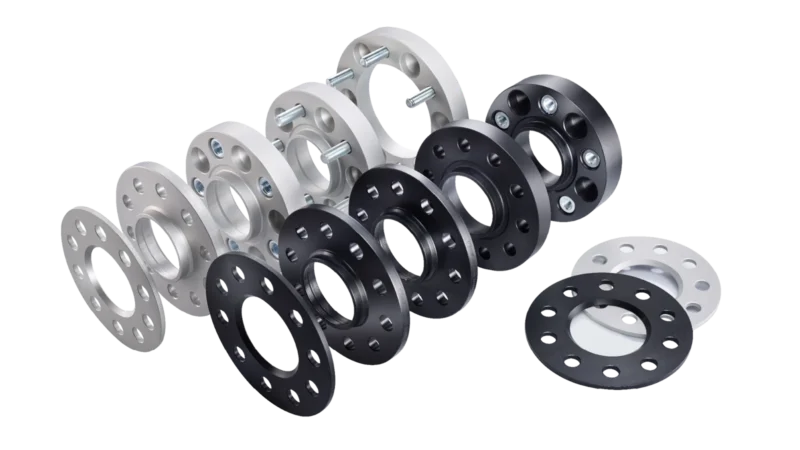

Manufacturer range illustration; the exact components and fittings vary by application.
