H&R 33220-3 is an anti-roll bar kit for the vehicle applications below. Check the chassis, engine and any build-date or original-equipment restrictions before ordering.
Bar specifications
- Front: H&R 33220 VA (F); 24 mm; 2 adjustment positions; 210 / 190 mm effective lever arms
- Rear: H&R 33220 HA3 (R); 22 mm; 2 adjustment positions; 154 / 134 mm effective lever arms
This anti-roll-bar product does not provide ride-height adjustment.
Vehicle applications
For the 250 kW RS3 Sportback quattro application below. The TT RS uses the separate 33220-4 kit with a different front bar.
Audi RS3 Sportback quattro (8PA)
- RS3 quattro | 250kW | 2480cc | 5 cyl.
Fitting notes
- Where replacement mountings are not supplied, reuse the original mounting components only if they are in like-new condition; replace worn parts before fitting.
- H&R permits the front bar to be used without the rear bar, but warns that this may increase understeer. H&R has not tested or verified using the rear bar on its own.
- Follow H&R’s installation instructions and the documents for this exact part number.
Manufacturer-listed documents: with TÜV® certificate. Check the part-specific document for its application conditions.
View H&R’s part-specific technical information and documents.
Fitting documents
The original front and rear anti-roll-bar clamps are reused with the supplied H&R bushes. The manufacturer instructions describe separating the riveted front clamps while preserving their fixing features. Have a suspension specialist follow the illustrated procedure and check the completed installation and clearances.
- Complete H&R part-specific certificate
- H&R general anti-roll-bar installation instructions
- H&R VW-platform clamp and bush installation instructions

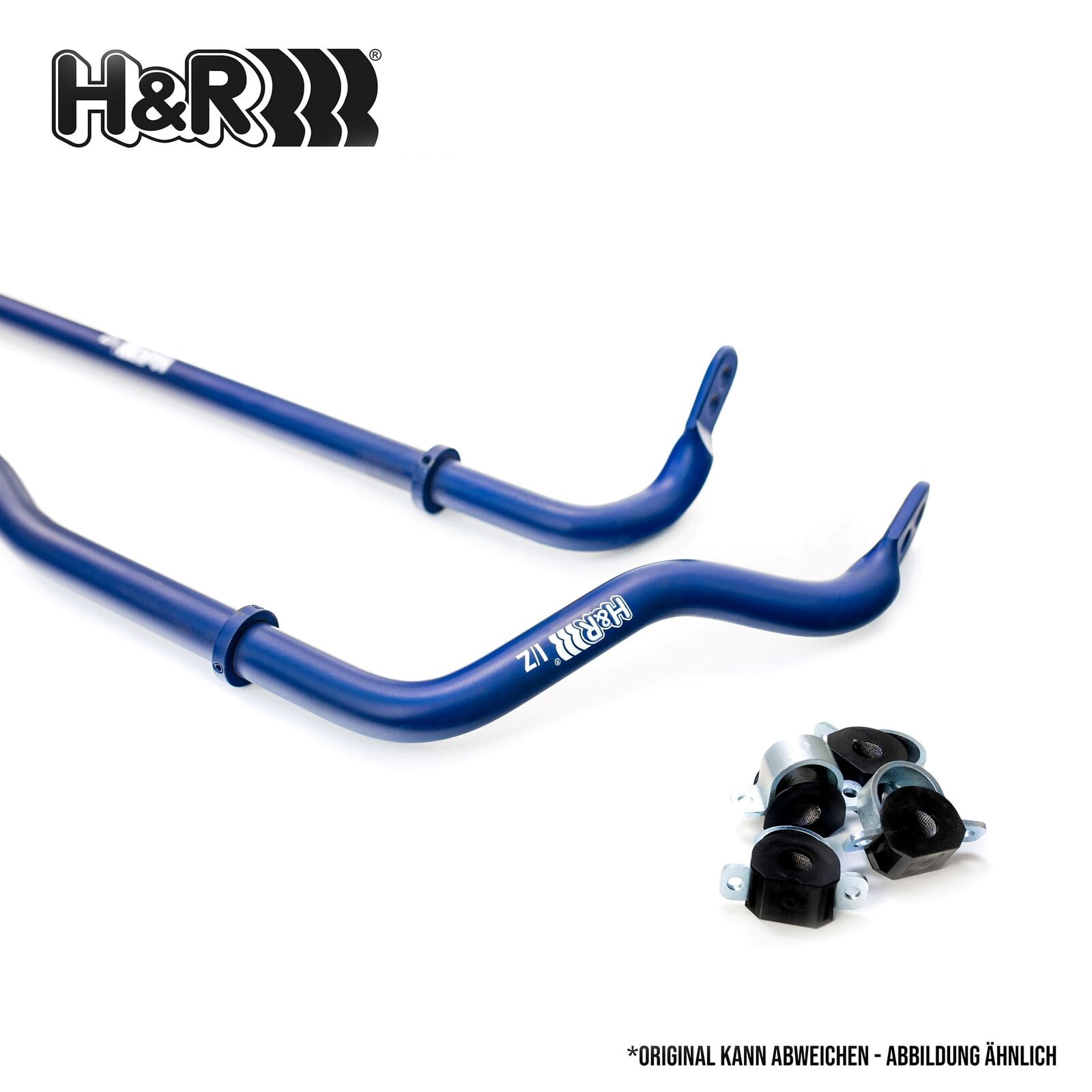

Product image
The manufacturer supplies a representative H&R product photograph. The bar shape, mounting components and appearance can differ for this application; use the part number and specifications to select the product.
Ordering from GSM Performance
This part is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and any suspension or exhaust modifications if you would like help checking the application.
