H&R Anti-Roll Bar Kit for BMW 3 Series / M3 (E30) – 33577-1

£448.93 Incl. VAT

For BMW 3 Series / M3 (E30). Front 22 mm; rear 18 mm. For the listed E30 applications. Cars without an original rear anti-roll bar need the additional original BMW mounting parts listed in the fitting notes, two of each. Check the exact body and engine below. Check the engine and fitting conditions below. Manufacturer image is representative. Contact us for the current supplier lead time.

Inc/Exc VAT

Available on back-order

Add to wishlist
SKU: 33577-1 Categories: , ,
Save to Pinterest

Free UK shipping on all orders over £100

  • Personalized order tracking
  • Over 20 years of technical experience
  • In-store appointments available



Guaranteed Safe Checkout

Visa, Mastercard, American Express, PayPal, Klarna and Amazon Pay accepted

H&R 33577-1 is an anti-roll bar kit for the vehicle applications below. Check the chassis, engine and any build-date or original-equipment restrictions before ordering.

Bar specifications

  • Front: H&R 33 577 VA; 22 mm; 3 adjustment positions; 130 / 145 / 160 mm effective lever arms
  • Rear: H&R 33 577 HA; 18 mm; 2 adjustment positions; 185 / 200 mm effective lever arms

This anti-roll-bar product does not provide ride-height adjustment.

Vehicle applications

For the listed E30 applications. Cars without an original rear anti-roll bar need the additional original BMW mounting parts listed in the fitting notes, two of each. Check the exact body and engine below.

BMW 3 (E30)

  • 315 | 55kW | 1573cc | 4 cyl.
  • 324 d | 63kW | 2443cc | 6 cyl.
  • 316 | 66kW | 1766cc | 4 cyl.
  • 316 i | 73kW | 1596cc | 4 cyl.
  • 318 i | 75kW | 1766cc | 4 cyl.
  • 316 i | 75kW | 1596cc | 4 cyl.
  • 316 i | 75kW | 1766cc | 4 cyl.
  • 318 i | 77kW | 1766cc | 4 cyl.
  • 318 i | 83kW | 1796cc | 4 cyl.
  • 318 i | 85kW | 1796cc | 4 cyl.
  • 324 td | 85kW | 2443cc | 6 cyl.
  • 325 e 2.7 | 90kW | 2693cc | 6 cyl.
  • 320 i | 92kW | 1990cc | 6 cyl.
  • 320 i | 93kW | 1990cc | 6 cyl.
  • 320 i | 95kW | 1990cc | 6 cyl.
  • 325 e 2.7 | 95kW | 2693cc | 6 cyl.
  • 318 is | 100kW | 1796cc | 4 cyl.
  • 323 i | 102kW | 2316cc | 6 cyl.
  • 323 i | 110kW | 2316cc | 6 cyl.
  • 325 i | 125kW | 2494cc | 6 cyl.
  • 325 i | 126kW | 2494cc | 6 cyl.
  • 320 is | 141kW | 1990cc | 4 cyl.
  • M3 2.3 | 143kW | 2302cc | 4 cyl.
  • M3 2.3 | 147kW | 2302cc | 4 cyl.
  • M3 2.3 | 158kW | 2302cc | 4 cyl.
  • M3 EVO I 2.3 | 162kW | 2302cc | 4 cyl.
  • M3 EVO II 2.5 | 175kW | 2467cc | 4 cyl.

BMW 3 Cabriolet (E30)

  • 318 i | 83kW | 1796cc | 4 cyl.
  • 320 i | 93kW | 1990cc | 6 cyl.
  • 320 i | 95kW | 1990cc | 6 cyl.
  • 318 i | 103kW | 1796cc | 4 cyl.
  • 325 i | 125kW | 2494cc | 6 cyl.
  • 325 i | 126kW | 2494cc | 6 cyl.
  • M3 2.3 | 143kW | 2302cc | 4 cyl.
  • M3 2.3 | 147kW | 2302cc | 4 cyl.
  • M3 2.3 | 158kW | 2303cc | 4 cyl.

BMW 3 Touring (E30)

  • 316 i | 73kW | 1596cc | 4 cyl.
  • 316 i | 75kW | 1596cc | 4 cyl.
  • 318 i | 83kW | 1796cc | 4 cyl.
  • 324 td | 85kW | 2443cc | 6 cyl.
  • 318 i | 85kW | 1796cc | 4 cyl.
  • 320 i | 93kW | 1991cc | 6 cyl.
  • 320 i | 95kW | 1991cc | 6 cyl.
  • 325 i | 125kW | 2494cc | 6 cyl.

Fitting notes

  • Where replacement mountings are not supplied, reuse the original mounting components only if they are in like-new condition; replace worn parts before fitting.
  • H&R permits the front bar to be used without the rear bar, but warns that this may increase understeer. H&R has not tested or verified using the rear bar on its own.
  • E30 cars without an original rear anti-roll bar need additional original BMW mounting parts, two of each: retaining clip 33551129195; screw with washer 07119915066; drop link 33551126932; screw 07119912501; self-locking nut 07129946400; drop-link holder 33321127717; self-locking collar nut 31331092887.
  • Follow H&R’s installation instructions and the documents for this exact part number.

Manufacturer-listed documents: Part Type Approval (PTA). Check the part-specific document for its application conditions.

View H&R’s part-specific technical information and documents.

Fitting documents

Install at the original anti-roll-bar mounting points using the supplied bushes and mounting components, following the complete instructions. Have a suitably equipped workshop check the installation and clearances. Follow the relevant documents for any other suspension or wheel modifications.

Follow the separate H&R instructions for the supplied HR33-S027A01 rear-bar screw, including its mounting arrangement and tightening requirements.

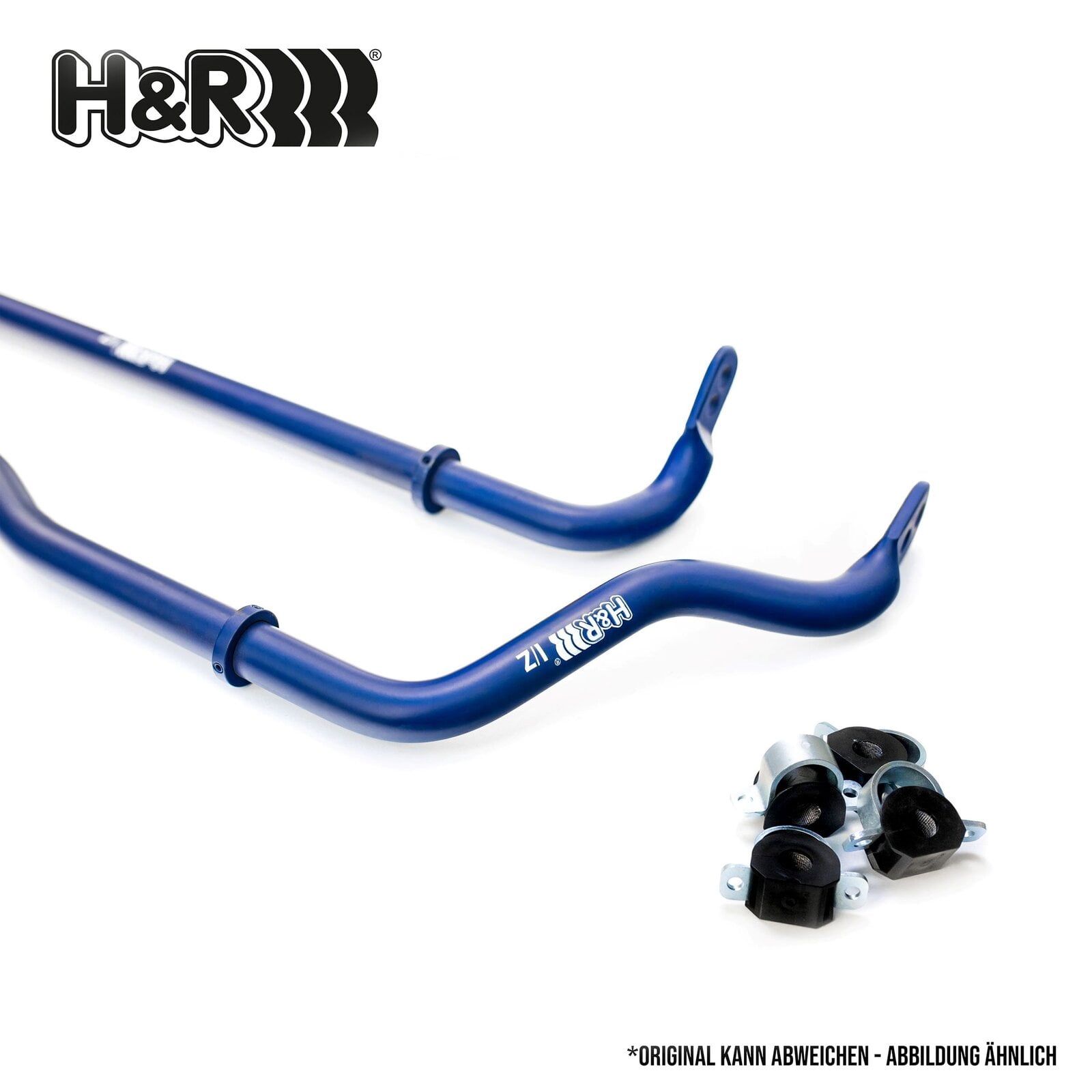

Product image

The manufacturer supplies a representative H&R product photograph. The bar shape, mounting components and appearance can differ for this application; use the part number and specifications to select the product.

Ordering from GSM Performance

This part is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and any suspension or exhaust modifications if you would like help checking the application.

Additional information

Brand

Vehicle Manufacturer

Vehicle Model

, ,

Fitting Position

Front Axle, Rear Axle
Ride Height Adjustment

Lead Time

Contact us for current lead time
Manufacturer Part Number

33577-1
Front Axle Bar Diameter

22 mm
Rear Axle Bar Diameter

18 mm
Front Bar Adjustment

3 positions
Rear Bar Adjustment

2 positions

Ordered from supplier. Contact GSM Performance for the current lead time.
