TEIN FLEX Z Coilovers for Audi A4L (B8) B8 (Chinese-market imports) – VSGB4-C1AA2

£960.00 Incl. VAT

Chinese-market applications only. Match the original vehicle market, chassis, engine, trim and build dates shown below. UK registration alone does not establish compatibility with UK-market versions.

TEIN FLEX Z VSGB4-C1AA2 for Audi A4L (B8) B8. Rear damping is adjustable; front adjustment is not specified by TEIN. Check the detailed application and ride-height table below.

Supplied to order. Contact GSM Performance for availability and lead time.

Inc/Exc VAT

Available on back-order

SKU: VSGB4-C1AA2 Categories: , ,
Save to Pinterest

Free UK shipping on all orders over £100

  • Personalized order tracking
  • Over 20 years of technical experience
  • In-store appointments available



Guaranteed Safe Checkout

Visa, Mastercard, American Express, PayPal, Klarna and Amazon Pay accepted

Why buy from us

  • Free UK delivery over £100Calculated at checkout on smaller orders.
  • Tracking by email and textFrom the moment it leaves us.
  • Fitting advice since 2003Ask before you buy if you are unsure.
  • Showroom appointmentsSee the kit in person before you order.

Secure checkout

Visa, Mastercard, American Express, PayPal, Klarna and Amazon Pay accepted

This TEIN FLEX Z kit uses twin-tube dampers. TEIN confirms rear damping adjustment; front adjustability is not specified in its exact-part application data. This VSGB4-C1AA2 kit is listed for the specific applications below. Match your chassis, engine and model year before ordering.

Vehicle market: Chinese-market applications only. Match the original vehicle market, chassis, engine, trim and build dates shown below. UK registration alone does not establish compatibility with UK-market versions.

Vehicle applications and ride-height settings

Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment.

Audi A4L (B8) B8 2009-2014 — Chinese-market

  • Original vehicle market: Chinese-market
  • Engine displacement: 2000 cc
  • Drive: Front-wheel drive
  • Grade / application: 35 TFSI
  • Recommended front height change: -40 to -20 mm
  • Recommended rear height change: -40 to -20 mm
  • Maximum front adjustable range: -75 to +5 mm
  • Maximum rear adjustable range: -52 to -7 mm
  • TEIN reference setting: -30 mm front; -30 mm rear
  • Spring rates: 10 kgf/mm front; 5 kgf/mm rear
  • Upper mounts: Front: Reuse original upper mount; rear: Reuse original upper mount
  • Damping adjustment: Rear: 16-level adjustment. Front: not specified in TEIN’s exact-part application data.
  • Full-length adjustment: Front: not specified by TEIN. Rear: not supported.

Installation and ordering

Use a suspension specialist for installation and wheel alignment. Follow the supplied instructions and check tyre, body and suspension clearance throughout steering and suspension travel. Optional EDFC electronics are sold separately.

Supplied to order. Contact GSM Performance for current availability and lead time before booking installation.

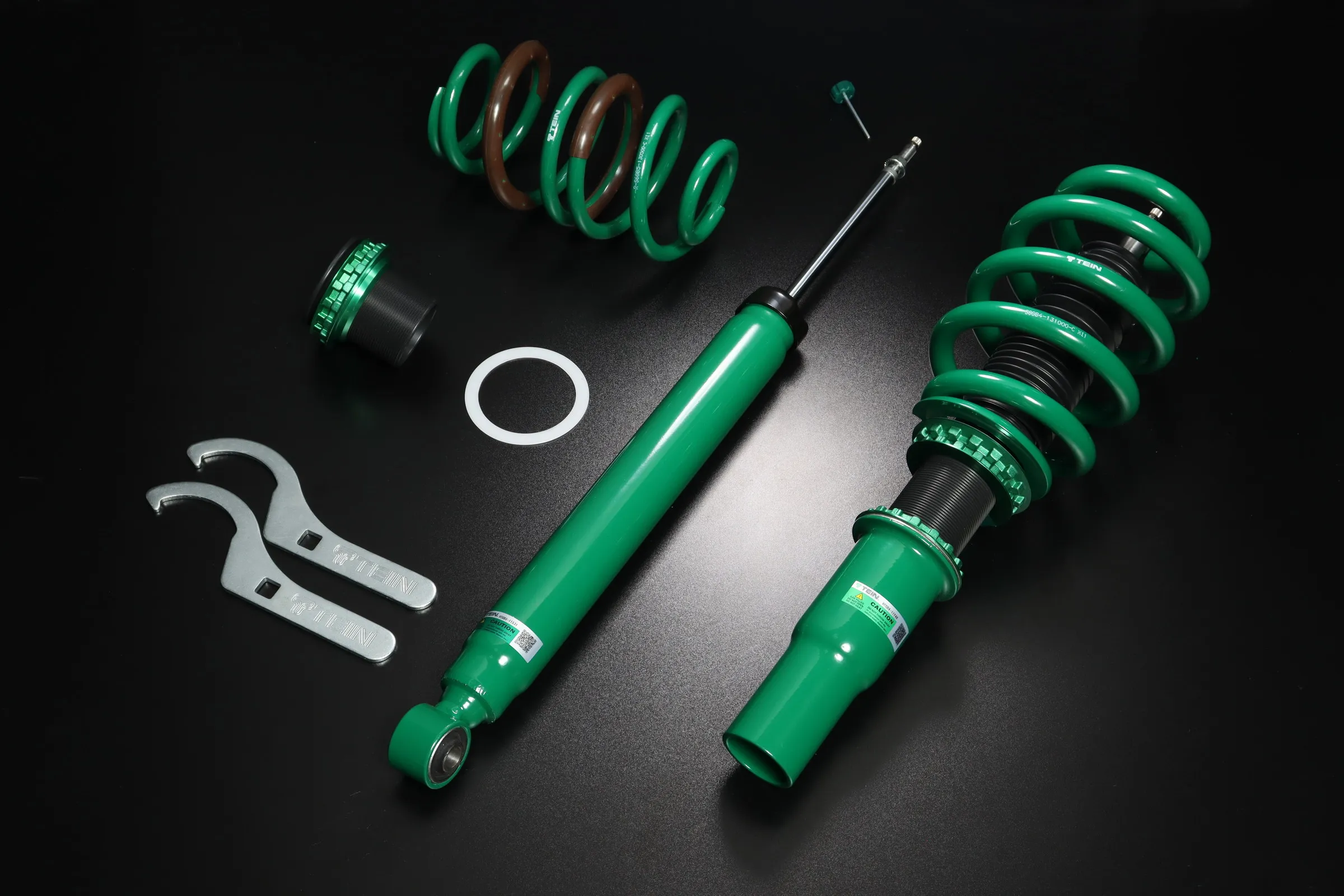

Product photograph

The supplier catalogue photograph shows selected components associated with this part number; it is not a complete contents layout.

Application data: TEIN UK catalogue for VSGB4-C1AA2.

Additional information

Brand

Vehicle Manufacturer

Vehicle Model

Series

Damper Type

Top Mount Type

Ride Height Adjustment

Spring Rate

Kit Configuration

Fitting Position

Front and Rear

Will this fit my car?
This listing is for the Audi A4L (B8) B8. Chassis code, model year, engine and drivetrain all matter, and TEIN often use different part numbers for cars that look the same, so check your car against the vehicle table in the description. If anything is unclear, send us your registration or VIN and we will check it before you order.

What can I adjust?
This kit uses twin-tube dampers with adjustable rear damping. TEIN do not specify front damping adjustment for this application, so ask us if that matters to you.

What comes in the kit?
Coilovers front and rear. It reuses the original upper mounts front and rear. Spring rates are 10 kgf/mm front and 5 kgf/mm rear.

How low will it go?
TEIN publish a recommended height range for each application, worked out in their own testing, and a wider maximum range that is not a recommended setting. For this kit the recommended setting is 20 to 40 mm lower at the front and 20 to 40 mm lower at the rear. Our guide Ride Height, Preload And Getting A Coilover Setup Right explains how to set it without running out of travel.

Is it right for road or track?
It depends how much of your driving is on track. Our guide Fast Road Or Track: Choosing The Damping On A Set Of Coilovers explains what 1-way, 2-way and 3-way adjustment gets you.

Can I fit it myself?
Our guide Fitting Coilovers At Home Or Having Them Done covers what the job involves. Either way, have the wheel alignment checked after fitting and check wheel and tyre clearance through full steering lock and suspension travel.

Can they be rebuilt?
TEIN run a replacement service for FLEX Z dampers rather than an overhaul, so a worn damper is swapped for a new unit. Ask us if you need one.

How long does it take?
This kit is ordered in from the supplier for your car. Ask us for the current lead time before you book the fitting.
