TEIN FLEX Z combines twin-tube dampers with 16-level adjustment of compression and rebound together. This VSY20-C1SA3 kit is listed for the specific applications below. Match your chassis, engine and model year before ordering.
Vehicle applications and ride-height settings
Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment.
Lexus IS200 GXE10 2000-2005
- Engine displacement: 2000 cc
- Drive: Rear-wheel drive
- Grade / application: See chassis, engine and years above
- Recommended front height change: -45 to -25 mm
- Recommended rear height change: -35 to -15 mm
- Maximum front adjustable range: -88 to +19 mm
- Maximum rear adjustable range: -101 to +28 mm
- TEIN reference setting: -35 mm front; -25 mm rear
- Spring rates: 10 kgf/mm front; 8 kgf/mm rear
- Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount
Fitting requirements for this application: Includes the five-door Sports Cross application.
Installation and ordering
Use a suspension specialist for installation and wheel alignment. Follow the supplied instructions and check tyre, body and suspension clearance throughout steering and suspension travel. Optional EDFC electronics are sold separately.
Supplied to order. Contact GSM Performance for current availability and lead time before booking installation.

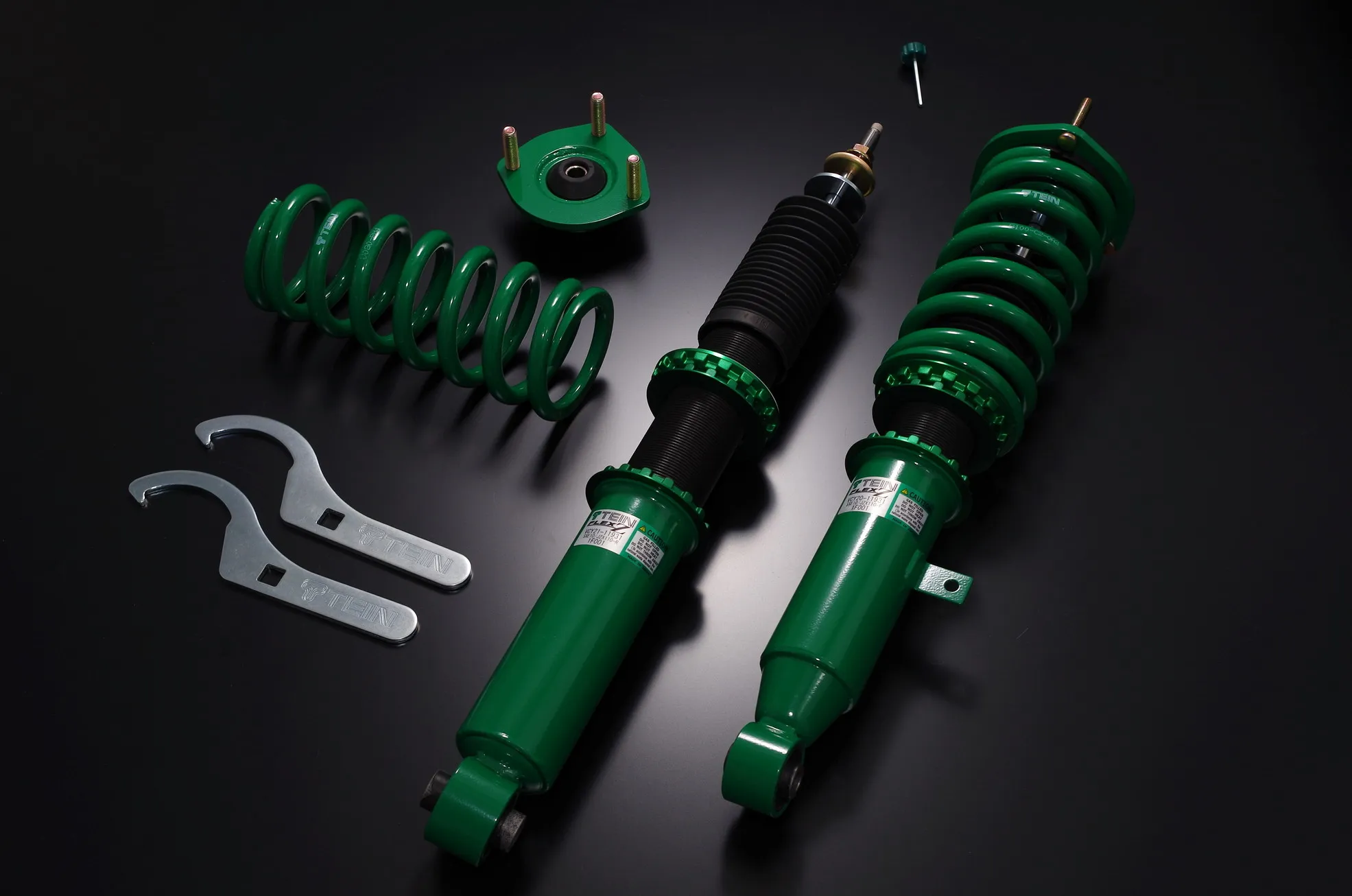

Product photograph
The supplier catalogue photograph shows selected components associated with this part number; it is not a complete contents layout.
Application data: TEIN UK catalogue for VSY20-C1SA3.
