The TEIN FLEX Z VSM40-C1SA1 is a vehicle-specific coilover kit for the UK-market applications listed below. It combines twin-tube dampers with 16-level adjustment of compression and rebound together. Use the recommended ride-height settings for your exact application when planning your setup.
Check your vehicle
Front camber may need adjustment to prevent interference with the suspension arm. The UK applications verified here include NA 1.6, NA 1.8 and NB 1.6; NB 1.8 is not included in this listing.
UK vehicle applications and ride-height settings
All height figures below are changes relative to original equipment ride height. A negative figure means lowering; a positive figure means raising. TEIN distinguishes the maximum adjustable range from the recommended range established by testing. The maximum figure is not a recommended operating setting. Actual height can vary with vehicle condition and equipment.
Mazda MX-5 NA6CE 1990-1998
- Engine displacement: 1600 cc
- Drive: Rear-wheel drive
- Grade / application: See chassis and engine above
- Recommended front height change: -45 to -25 mm
- Recommended rear height change: -50 to -30 mm
- Maximum front adjustable range: -77 to +20 mm
- Maximum rear adjustable range: -93 to -1 mm
- TEIN reference setting: -35 mm front; -40 mm rear
- Spring rates: 7 kgf/mm front; 6 kgf/mm rear
Mazda MX-5 NA8C 1990-1998
- Engine displacement: 1800 cc
- Drive: Rear-wheel drive
- Grade / application: See chassis and engine above
- Recommended front height change: -50 to -30 mm
- Recommended rear height change: -60 to -40 mm
- Maximum front adjustable range: -82 to +15 mm
- Maximum rear adjustable range: -103 to -11 mm
- TEIN reference setting: -40 mm front; -50 mm rear
- Spring rates: 7 kgf/mm front; 6 kgf/mm rear
Mazda MX-5 NB6C 1999-2005
- Engine displacement: 1600 cc
- Drive: Rear-wheel drive
- Grade / application: See chassis and engine above
- Recommended front height change: -30 to -10 mm
- Recommended rear height change: -45 to -25 mm
- Maximum front adjustable range: -76 to +28 mm
- Maximum rear adjustable range: -91 to -3 mm
- TEIN reference setting: -20 mm front; -35 mm rear
- Spring rates: 7 kgf/mm front; 6 kgf/mm rear
Before installation
Have the kit installed and aligned by a suspension specialist. Check wheel, tyre and body clearance through the full steering and suspension travel. Use the installation instructions supplied with the kit; they determine the correct assembly and permitted settings. Optional EDFC electronics are not included in this listing.
Ordering and product image

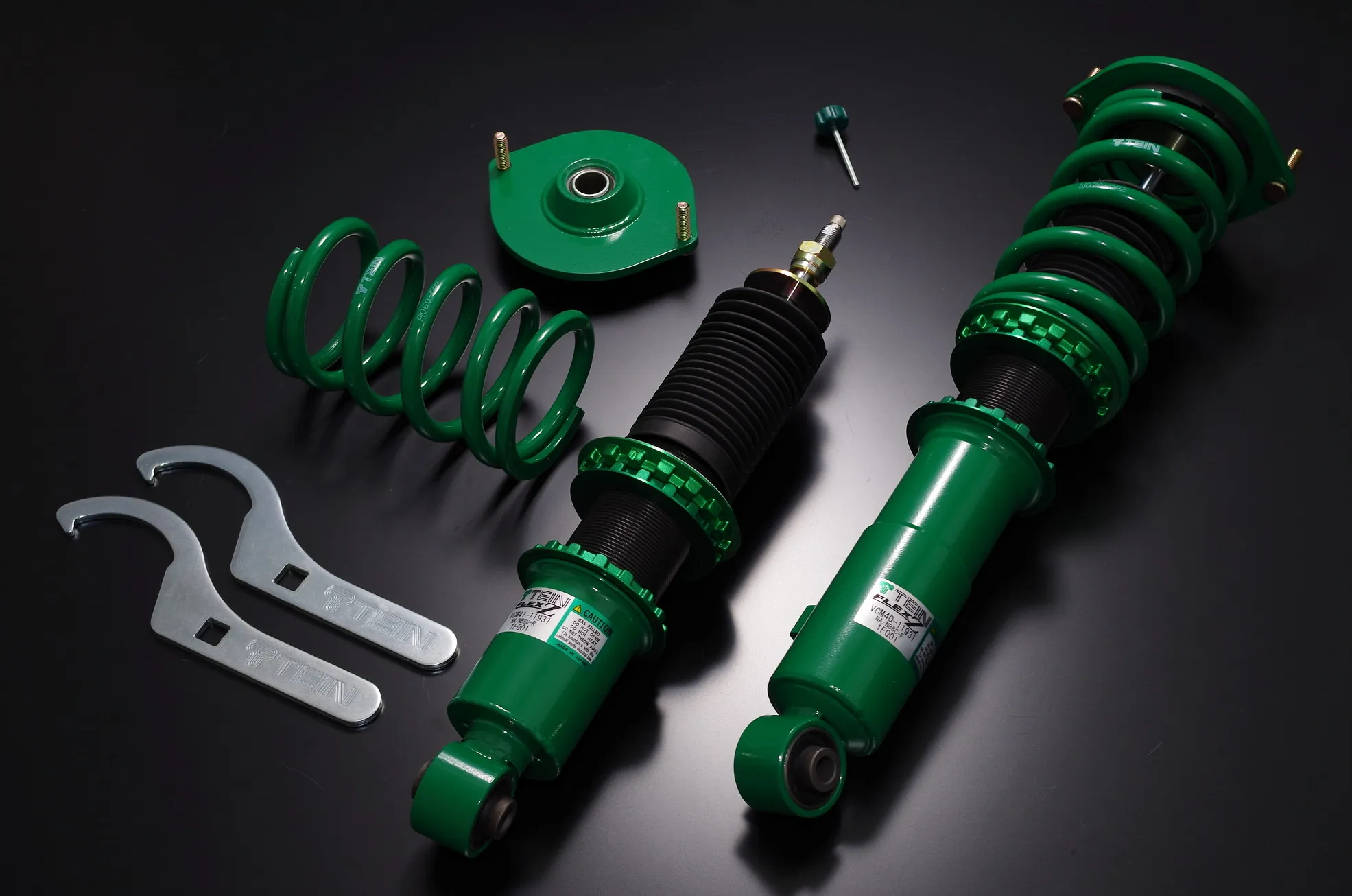

Available to order through our supplier network. Contact GSM Performance to confirm current availability and lead time before booking installation. The supplier catalogue photograph shows selected components associated with this part number, rather than every item supplied.
Application specifications: TEIN UK manufacturer catalogue for VSM40-C1SA1. Product family: TEIN FLEX Z.
