TEIN FLEX Z VSQ62-C1AA3 coilover suspension components for Lexus Gs250 GRL11 / Lexus GS300h AWL10 / Lexus Gs350 GRL10, GRL10L / Lexus GS450h GWL10 TEIN FLEX Z Coilovers for Lexus Gs250 GRL11 / Lexus GS300h AWL10 / Lexus Gs350 GRL10, GRL10L / Lexus GS450h GWL10 (market-specific imports) - VSQ62-C1AA3 £1,032.00 Incl. VAT£860.00 Excl. VAT
TEIN FLEX Z VSGB0-C1AA3 coilover suspension components for Volkswagen Golf (Golf Vii) AUCHH TEIN FLEX Z Coilovers for Volkswagen Golf (Golf Vii) AUCHH (Japanese-market imports) - VSGB0-C1AA3 £1,020.00 Incl. VAT£850.00 Excl. VAT

TEIN FLEX Z Coilovers for Mazda MX-5 ND / Mazda MX-5 Miata NDERC / Mazda MX-5 Miata RF NDERC (market-specific imports) – VSMD0-CUSA3

£924.00 Incl. VAT

German-market / US-market applications only. Match the original vehicle market, chassis, engine, trim and build dates shown below. UK registration alone does not establish compatibility with UK-market versions.

TEIN FLEX Z VSMD0-CUSA3 for Mazda MX-5 ND / Mazda MX-5 Miata NDERC / Mazda MX-5 Miata RF NDERC. 16-level damping adjustment. Check the detailed application and ride-height table below.

Supplied to order. Contact GSM Performance for availability and lead time.

Inc/Exc VAT

Available on back-order

SKU: VSMD0-CUSA3 Categories: , ,
Save to Pinterest

Free UK shipping on all orders over £100

  • Personalized order tracking
  • Over 20 years of technical experience
  • In-store appointments available



Guaranteed Safe Checkout

Visa, Mastercard, American Express, PayPal, Klarna and Amazon Pay accepted

Why buy from us

  • Free UK delivery over £100Calculated at checkout on smaller orders.
  • Tracking by email and textFrom the moment it leaves us.
  • Fitting advice since 2003Ask before you buy if you are unsure.
  • Showroom appointmentsSee the kit in person before you order.

Secure checkout

Visa, Mastercard, American Express, PayPal, Klarna and Amazon Pay accepted

TEIN FLEX Z combines twin-tube dampers with 16-level adjustment of compression and rebound together. This VSMD0-CUSA3 kit is listed for the specific applications below. Match your chassis, engine and model year before ordering.

Vehicle market: German-market / US-market applications only. Match the original vehicle market, chassis, engine, trim and build dates shown below. UK registration alone does not establish compatibility with UK-market versions.

Vehicle applications and ride-height settings

Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment.

Mazda MX-5 ND 2015+ — German-market

  • Original vehicle market: German-market
  • Engine displacement: 1500 cc
  • Drive: Rear-wheel drive
  • Grade / application: See chassis, engine and years above
  • Recommended front height change: -45 to -35 mm
  • Recommended rear height change: -40 to -30 mm
  • Maximum front adjustable range: Not specified by TEIN for this application
  • Maximum rear adjustable range: Not specified by TEIN for this application
  • TEIN reference setting: -45 mm front; -40 mm rear
  • Spring rates: 6 kgf/mm front; 4 kgf/mm rear
  • Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount

Fitting requirements for this application: TEIN lists Teilegutachten/part-certificate approval with axle loads of 645 kg front and 665 kg rear.

Mazda MX-5 MIATA NDERC 2016+ — US-market

  • Original vehicle market: US-market
  • Engine displacement: 2000 cc
  • Drive: Rear-wheel drive
  • Grade / application: See chassis, engine and years above
  • Recommended front height change: -55 to -35 mm
  • Recommended rear height change: -50 to -30 mm
  • Maximum front adjustable range: -127 to +10 mm
  • Maximum rear adjustable range: -119 to -12 mm
  • TEIN reference setting: -45 mm front; -40 mm rear
  • Spring rates: 6 kgf/mm front; 4 kgf/mm rear
  • Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount

Mazda MX-5 MIATA RF NDERC 2017+ — US-market

  • Original vehicle market: US-market
  • Engine displacement: 2000 cc
  • Drive: Rear-wheel drive
  • Grade / application: See chassis, engine and years above
  • Recommended front height change: -50 to -30 mm
  • Recommended rear height change: -55 to -35 mm
  • Maximum front adjustable range: -122 to +15 mm
  • Maximum rear adjustable range: -120 to -13 mm
  • TEIN reference setting: -40 mm front; -45 mm rear
  • Spring rates: 6 kgf/mm front; 4 kgf/mm rear
  • Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount

Installation and ordering

Use a suspension specialist for installation and wheel alignment. Follow the supplied instructions and check tyre, body and suspension clearance throughout steering and suspension travel. Optional EDFC electronics are sold separately.

Supplied to order. Contact GSM Performance for current availability and lead time before booking installation.

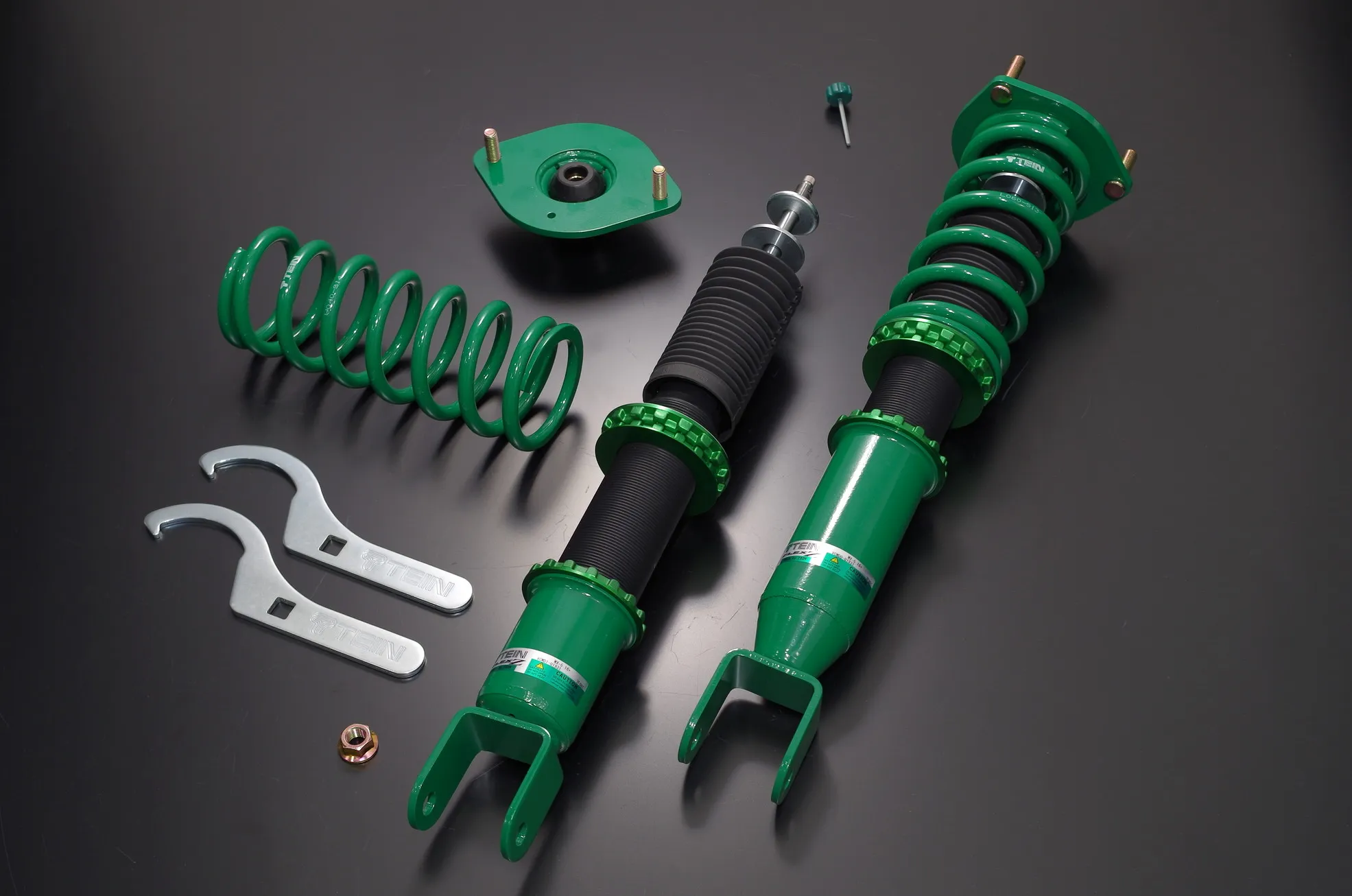

Product photograph

The supplier catalogue photograph shows selected components associated with this part number; it is not a complete contents layout.

Application data: TEIN UK catalogue for VSMD0-CUSA3.

Additional information

Brand

Vehicle Manufacturer

Vehicle Model

, ,

Series

Damper Type

Top Mount Type

Ride Height Adjustment

, ,

Spring Rate

Kit Configuration

Fitting Position

Front and Rear

Will this fit my car?
This listing is for the Mazda MX-5 MIATA NDERC, MX-5 MIATA RF NDERC and MX-5 ND. Chassis code, model year, engine and drivetrain all matter, and TEIN often use different part numbers for cars that look the same, so check your car against the vehicle table in the description. If anything is unclear, send us your registration or VIN and we will check it before you order.

What can I adjust?
The TEIN FLEX Z uses twin-tube dampers with 16-level adjustable damping, and the ride height is adjustable.

What comes in the kit?
Coilovers front and rear. It has rubber upper mounts front and rear. Spring rates are 6 kgf/mm front and 4 kgf/mm rear.

How low will it go?
TEIN publish a recommended height range for each application, worked out in their own testing, and a wider maximum range that is not a recommended setting. The recommended range for each version of the car is in the vehicle table in the description. Our guide Ride Height, Preload And Getting A Coilover Setup Right explains how to set it without running out of travel.

Is it right for road or track?
It depends how much of your driving is on track. Our guide Fast Road Or Track: Choosing The Damping On A Set Of Coilovers explains what 1-way, 2-way and 3-way adjustment gets you.

Can I fit it myself?
Our guide Fitting Coilovers At Home Or Having Them Done covers what the job involves. Either way, have the wheel alignment checked after fitting and check wheel and tyre clearance through full steering lock and suspension travel.

Can they be rebuilt?
TEIN run a replacement service for FLEX Z dampers rather than an overhaul, so a worn damper is swapped for a new unit. Ask us if you need one.

How long does it take?
This kit is ordered in from the supplier for your car. Ask us for the current lead time before you book the fitting.
