TEIN FLEX Z combines twin-tube dampers with 16-level adjustment of compression and rebound together. This VSP24-C1AA3 kit is listed for the specific applications below. Match your chassis, engine and model year before ordering.
Application limit: This listing excludes the Nissan 350Z Roadster. TEIN lists conflicting rear recommended and maximum height ranges for the Roadster, so compatibility is not offered here.
Vehicle applications and ride-height settings
Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment.
Nissan 350Z Z33 2002-2008
- Engine displacement: 3500 cc
- Drive: Rear-wheel drive
- Grade / application: See chassis, engine and years above
- Recommended front height change: -20 to +0 mm
- Recommended rear height change: -20 to +0 mm
- Maximum front adjustable range: -76 to +23 mm
- Maximum rear adjustable range: -60 to +0 mm
- TEIN reference setting: -10 mm front; -10 mm rear
- Spring rates: 10 kgf/mm front; 9 kgf/mm rear
- Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount
Fitting requirements for this application: TEIN recommends optional EDFC for the rear because manual damping adjustment requires shock-absorber removal.
Infiniti G35 COUPE V35 2003-2007
- Engine displacement: 3500 cc
- Drive: Rear-wheel drive
- Grade / application: See chassis, engine and years above
- Recommended front height change: -30 to -10 mm
- Recommended rear height change: -25 to -5 mm
- Maximum front adjustable range: -91 to +23 mm
- Maximum rear adjustable range: -55 to +5 mm
- TEIN reference setting: -20 mm front; -15 mm rear
- Spring rates: 10 kgf/mm front; 9 kgf/mm rear
- Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount
Fitting requirements for this application: TEIN recommends optional EDFC for the rear because manual damping adjustment requires shock-absorber removal.
Infiniti G35 SEDAN V35 2003-2006
- Engine displacement: 3500 cc
- Drive: Rear-wheel drive
- Grade / application: See chassis, engine and years above
- Recommended front height change: -45 to -25 mm
- Recommended rear height change: -40 to -20 mm
- Maximum front adjustable range: -106 to +23 mm
- Maximum rear adjustable range: -80 to -20 mm
- TEIN reference setting: -35 mm front; -30 mm rear
- Spring rates: 10 kgf/mm front; 9 kgf/mm rear
- Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount
Installation and ordering
Use a suspension specialist for installation and wheel alignment. Follow the supplied instructions and check tyre, body and suspension clearance throughout steering and suspension travel. Optional EDFC electronics are sold separately.
Supplied to order. Contact GSM Performance for current availability and lead time before booking installation.

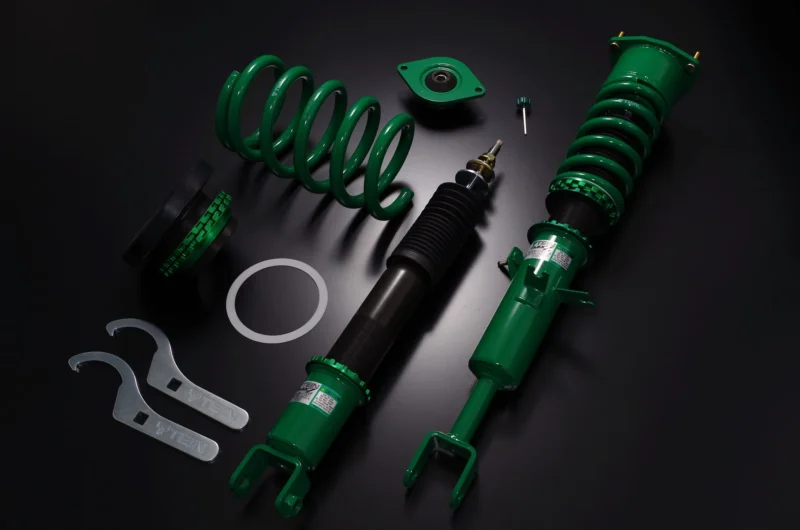

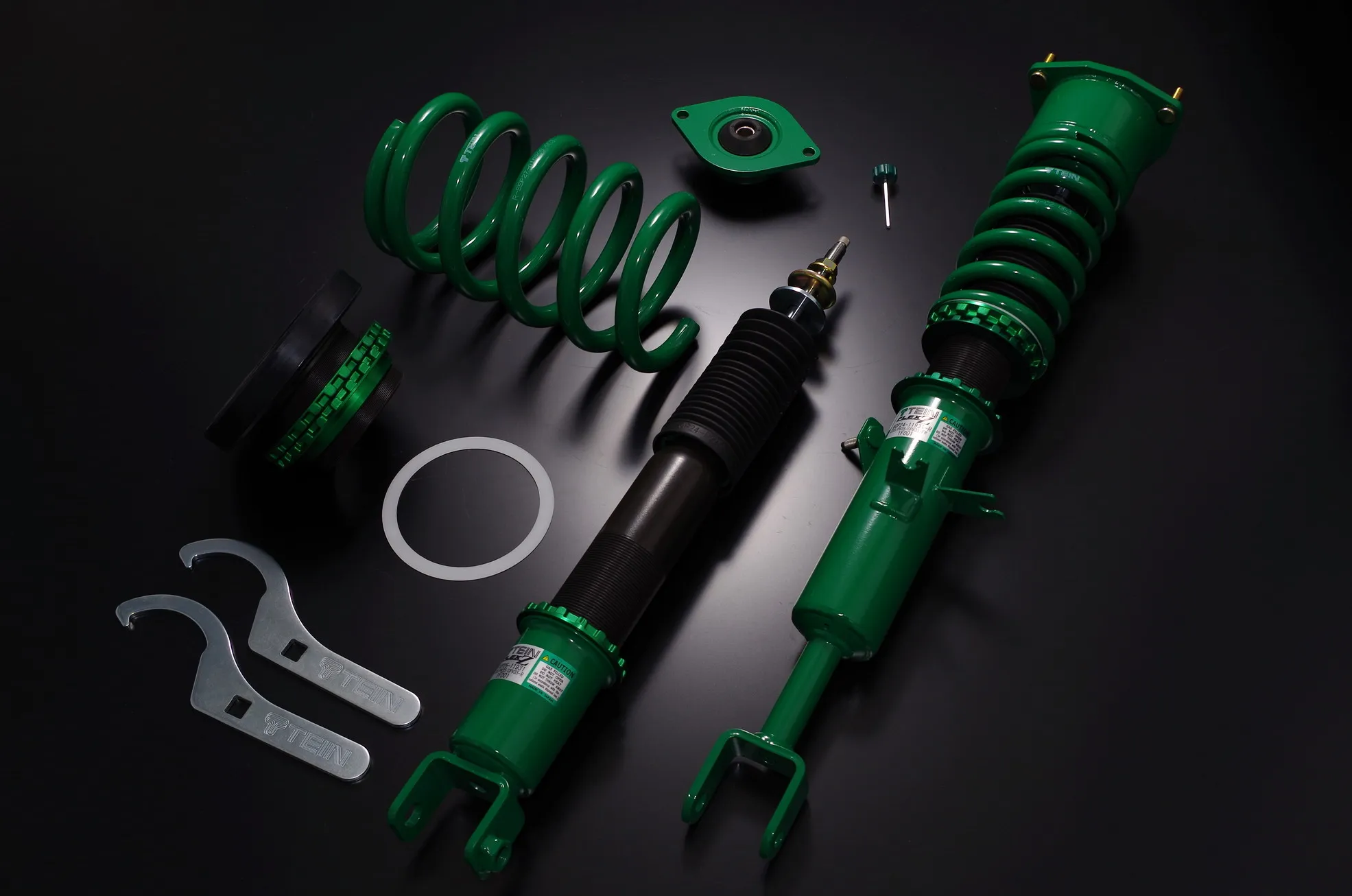

Product photograph
The supplier catalogue photograph shows selected components associated with this part number; it is not a complete contents layout.
Application data: TEIN UK catalogue for VSP24-C1AA3.
