TEIN FLEX Z combines twin-tube dampers with 16-level adjustment of compression and rebound together. This VSS80-CUSA1 kit is listed for the specific applications below. Match your chassis, engine and model year before ordering.
Vehicle market: US-market applications only. Match the original vehicle market, chassis, engine, trim and build dates shown below. UK registration alone does not establish compatibility with UK-market versions.
Vehicle applications and ride-height settings
Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment.
Subaru IMPREZA GEE 2008 — US-market
- Original vehicle market: US-market
- Engine displacement: 2500 cc
- Drive: Four-wheel drive
- Grade / application: WRX (4DR)
- Recommended front height change: -50 to -30 mm
- Recommended rear height change: -45 to -25 mm
- Maximum front adjustable range: -92 to -2 mm
- Maximum rear adjustable range: -103 to +5 mm
- TEIN reference setting: -40 mm front; -35 mm rear
- Spring rates: 6 kgf/mm front; 5 kgf/mm rear
- Upper mounts: Front: Camber-adjustable upper mount; rear: Pillowball upper mount
Subaru IMPREZA GEE 2009-2010 — US-market
- Original vehicle market: US-market
- Engine displacement: 2500 cc
- Drive: Four-wheel drive
- Grade / application: WRX (4DR) NARROW BODY
- Recommended front height change: -50 to -30 mm
- Recommended rear height change: -45 to -25 mm
- Maximum front adjustable range: -92 to -2 mm
- Maximum rear adjustable range: -103 to +5 mm
- TEIN reference setting: -40 mm front; -35 mm rear
- Spring rates: 6 kgf/mm front; 5 kgf/mm rear
- Upper mounts: Front: Camber-adjustable upper mount; rear: Pillowball upper mount
Subaru IMPREZA GHE 2008 — US-market
- Original vehicle market: US-market
- Engine displacement: 2500 cc
- Drive: Four-wheel drive
- Grade / application: WRX (5DR)
- Recommended front height change: -45 to -25 mm
- Recommended rear height change: -40 to -20 mm
- Maximum front adjustable range: -87 to +3 mm
- Maximum rear adjustable range: -98 to +10 mm
- TEIN reference setting: -35 mm front; -30 mm rear
- Spring rates: 6 kgf/mm front; 5 kgf/mm rear
- Upper mounts: Front: Camber-adjustable upper mount; rear: Pillowball upper mount
Subaru IMPREZA GHE 2009-2010 — US-market
- Original vehicle market: US-market
- Engine displacement: 2500 cc
- Drive: Four-wheel drive
- Grade / application: WRX (5DR) NARROW BODY
- Recommended front height change: -45 to -25 mm
- Recommended rear height change: -40 to -20 mm
- Maximum front adjustable range: -87 to +3 mm
- Maximum rear adjustable range: -98 to +10 mm
- TEIN reference setting: -35 mm front; -30 mm rear
- Spring rates: 6 kgf/mm front; 5 kgf/mm rear
- Upper mounts: Front: Camber-adjustable upper mount; rear: Pillowball upper mount
Subaru IMPREZA GRE 2011-2014 — US-market
- Original vehicle market: US-market
- Engine displacement: 2500 cc
- Drive: Four-wheel drive
- Grade / application: WRX (5DR) WIDE BODY, NON STI
- Recommended front height change: -40 to -20 mm
- Recommended rear height change: -40 to -20 mm
- Maximum front adjustable range: -82 to +8 mm
- Maximum rear adjustable range: -98 to +10 mm
- TEIN reference setting: -30 mm front; -30 mm rear
- Spring rates: 6 kgf/mm front; 5 kgf/mm rear
- Upper mounts: Front: Camber-adjustable upper mount; rear: Pillowball upper mount
Subaru IMPREZA GVE 2011-2014 — US-market
- Original vehicle market: US-market
- Engine displacement: 2500 cc
- Drive: Four-wheel drive
- Grade / application: WRX (4DR) WIDE BODY, NON STI
- Recommended front height change: -40 to -20 mm
- Recommended rear height change: -40 to -20 mm
- Maximum front adjustable range: -82 to +8 mm
- Maximum rear adjustable range: -98 to +10 mm
- TEIN reference setting: -30 mm front; -30 mm rear
- Spring rates: 6 kgf/mm front; 5 kgf/mm rear
- Upper mounts: Front: Camber-adjustable upper mount; rear: Pillowball upper mount
Installation and ordering
Use a suspension specialist for installation and wheel alignment. Follow the supplied instructions and check tyre, body and suspension clearance throughout steering and suspension travel. Optional EDFC electronics are sold separately.
Supplied to order. Contact GSM Performance for current availability and lead time before booking installation.

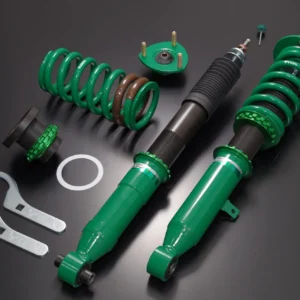

Product photograph
This is a representative TEIN FLEX Z range photograph. The pictured mounting hardware and layout may differ from this vehicle-specific kit. Select by part number and the application specification, not the photograph.
Application data: TEIN UK catalogue for VSS80-CUSA1.
