TEIN FLEX Z combines twin-tube dampers with 16-level adjustment of compression and rebound together. This VST60-C1SA3 kit is listed for the specific applications below. Match your chassis, engine and model year before ordering.
Vehicle applications and ride-height settings
Height changes are relative to original equipment ride height: negative values mean lowering and positive values mean raising. Use the recommended range for your exact vehicle. The maximum adjustment range describes mechanical travel and is not a recommended operating setting. Actual height varies with vehicle condition and equipment.
Toyota SUPRA JZA80 1993-2002
- Engine displacement: 3000 cc
- Drive: Rear-wheel drive
- Grade / application: TURBO
- Recommended front height change: -40 to -20 mm
- Recommended rear height change: -30 to -10 mm
- Maximum front adjustable range: -120 to +22 mm
- Maximum rear adjustable range: -122 to +34 mm
- TEIN reference setting: -30 mm front; -20 mm rear
- Spring rates: 14 kgf/mm front; 8 kgf/mm rear
- Upper mounts: Front: Rubber upper mount; rear: Rubber upper mount
Fitting requirements for this application: Not compatible with REAS-type shock absorbers. When fitting optional EDFC motors, remove, modify or reposition rear interior material as needed to prevent motor interference.
Installation and ordering
Use a suspension specialist for installation and wheel alignment. Follow the supplied instructions and check tyre, body and suspension clearance throughout steering and suspension travel. Optional EDFC electronics are sold separately.
Supplied to order. Contact GSM Performance for current availability and lead time before booking installation.

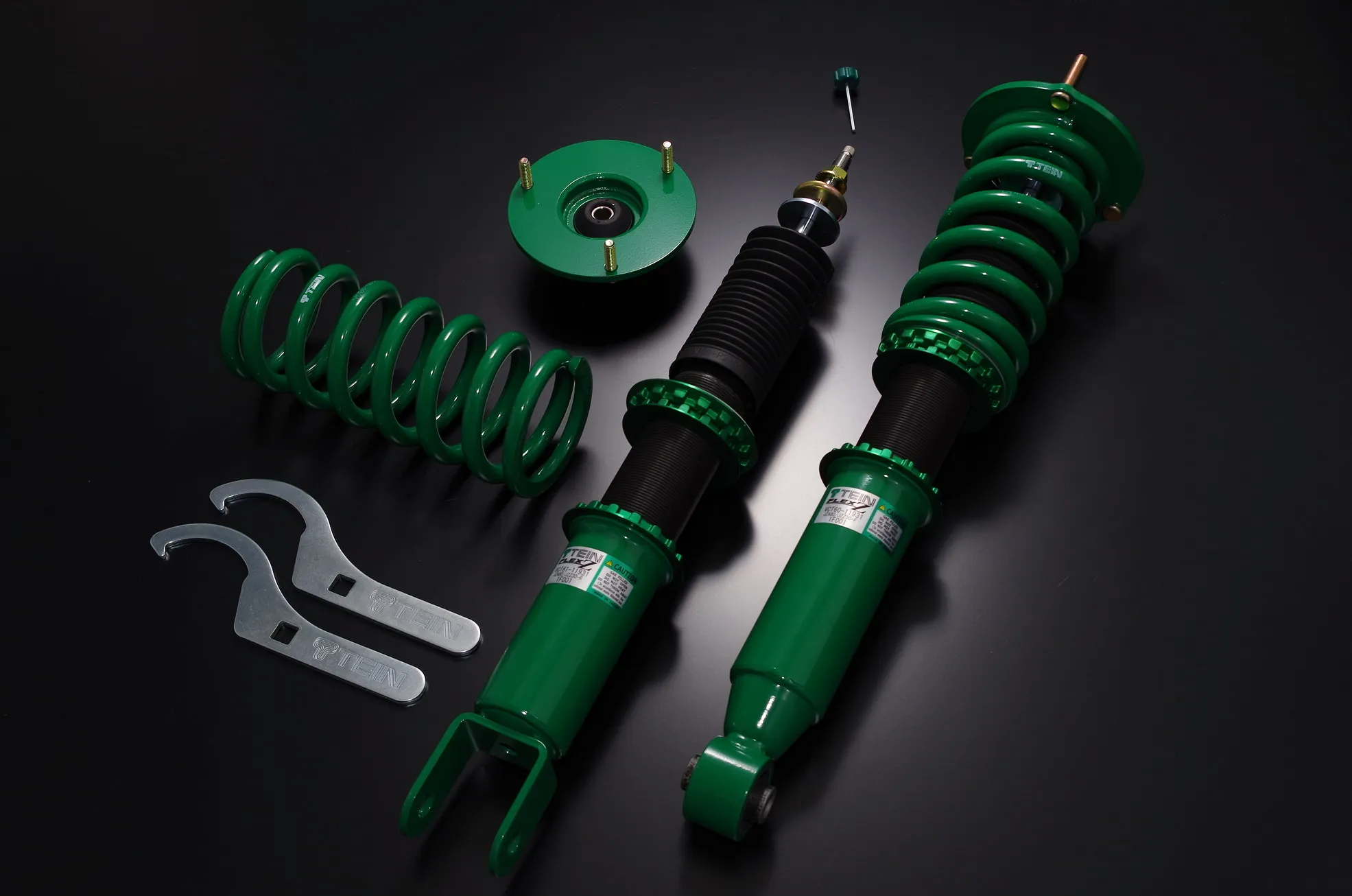

Product photograph
The supplier catalogue photograph shows selected components associated with this part number; it is not a complete contents layout.
Application data: TEIN UK catalogue for VST60-C1SA3.
