H&R 33936-1 is an anti-roll bar kit for the vehicle applications below. Check the chassis, engine and any build-date or original-equipment restrictions before ordering.
Bar specifications
- Front: H&R 33 936 VA; 28 mm; 2 adjustment positions; 187 / 167 mm effective lever arms
- Rear: H&R 33 936 HA; 24 mm; 2 adjustment positions; 255 / 235 mm effective lever arms
This anti-roll-bar product does not provide ride-height adjustment.
Vehicle applications
For the listed E36 M3 applications. This kit uses the 24 mm rear bar marked 33 936 HA; the Z3 M uses the separate 33936-2 version.
BMW M3 Saloon (E36)
- M3 3.0 | 210kW | 2990cc | 6 cyl.
- M3 3.2 | 236kW | 3201cc | 6 cyl.
BMW M3 Convertible (E36)
- M3 3.0 | 210kW | 2990cc | 6 cyl.
- M3 3.2 | 236kW | 3201cc | 6 cyl.
BMW M3 Coupe (E36)
- M3 3.0 | 210kW | 2990cc | 6 cyl.
- M3 3.0 | 217kW | 2990cc | 6 cyl.
- M3 3.2 | 236kW | 3201cc | 6 cyl.
Fitting notes
- Where replacement mountings are not supplied, reuse the original mounting components only if they are in like-new condition; replace worn parts before fitting.
- H&R permits the front bar to be used without the rear bar, but warns that this may increase understeer. H&R has not tested or verified using the rear bar on its own.
- Follow H&R’s installation instructions and the documents for this exact part number.
Manufacturer-listed documents: with TÜV® certificate. Check the part-specific document for its application conditions.
View H&R’s part-specific technical information and documents.
Fitting documents
Install at the original anti-roll-bar mounting points using the supplied bushes and mounting components, following the complete instructions. Have a suitably equipped workshop check the installation and clearances. Follow the relevant documents for any other suspension or wheel modifications.
Follow the separate H&R instructions for the supplied HR33-S027A01 rear-bar screw, including its mounting arrangement and tightening requirements.
- Complete H&R part-specific certificate
- H&R general anti-roll-bar installation instructions
- H&R special rear-bar screw installation instructions

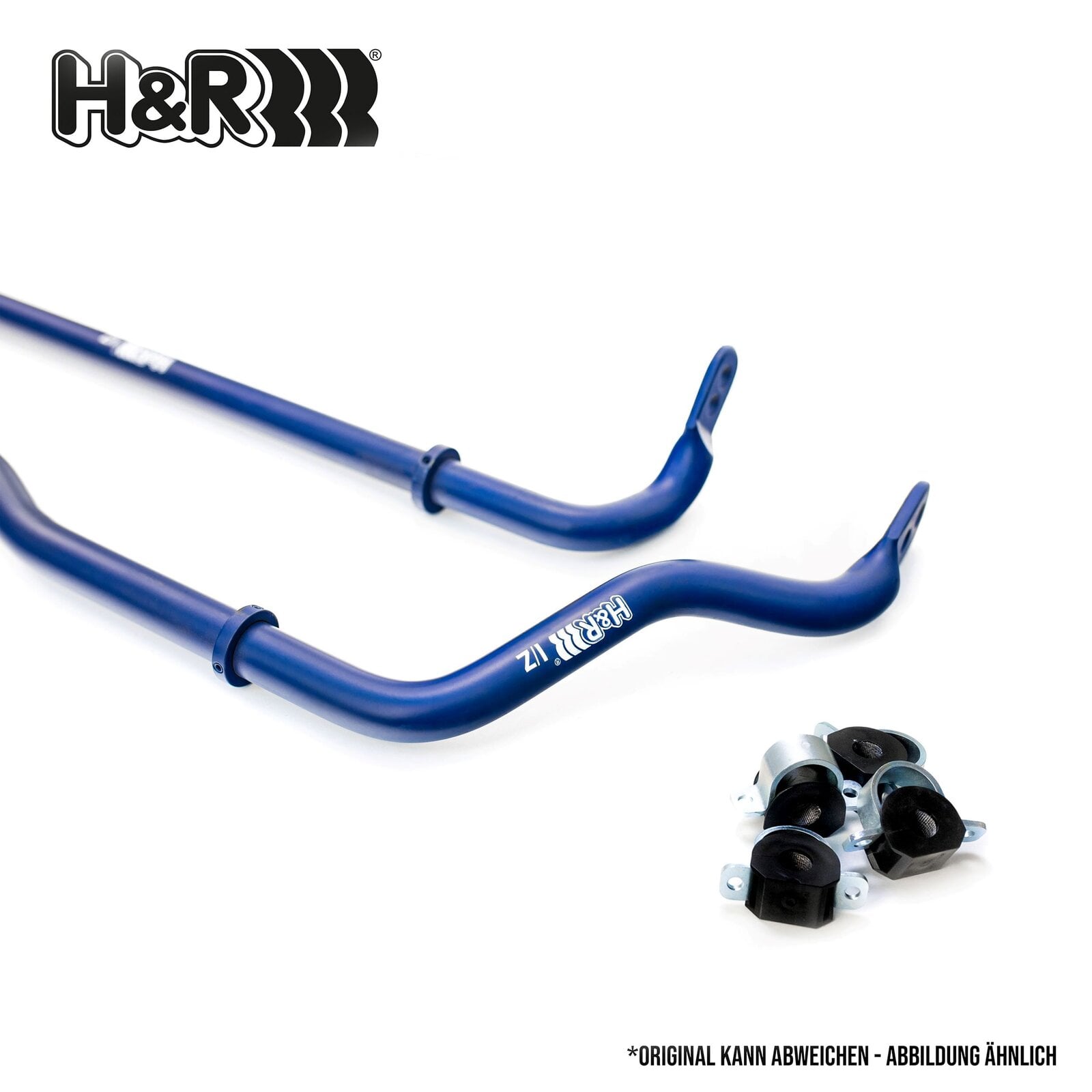

Product image
The manufacturer supplies a representative H&R product photograph. The bar shape, mounting components and appearance can differ for this application; use the part number and specifications to select the product.
Ordering from GSM Performance
This part is ordered from our supplier. Contact us for the current lead time. Send your registration or VIN and any suspension or exhaust modifications if you would like help checking the application.
