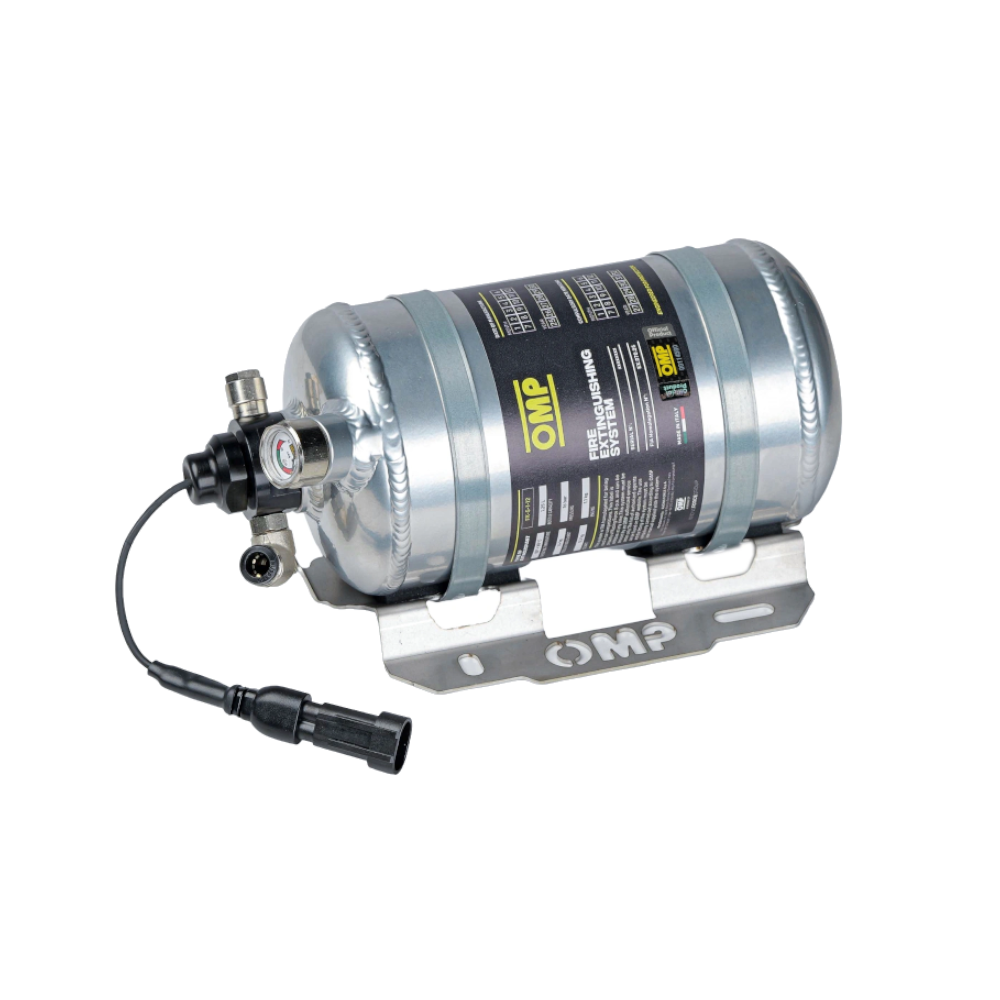

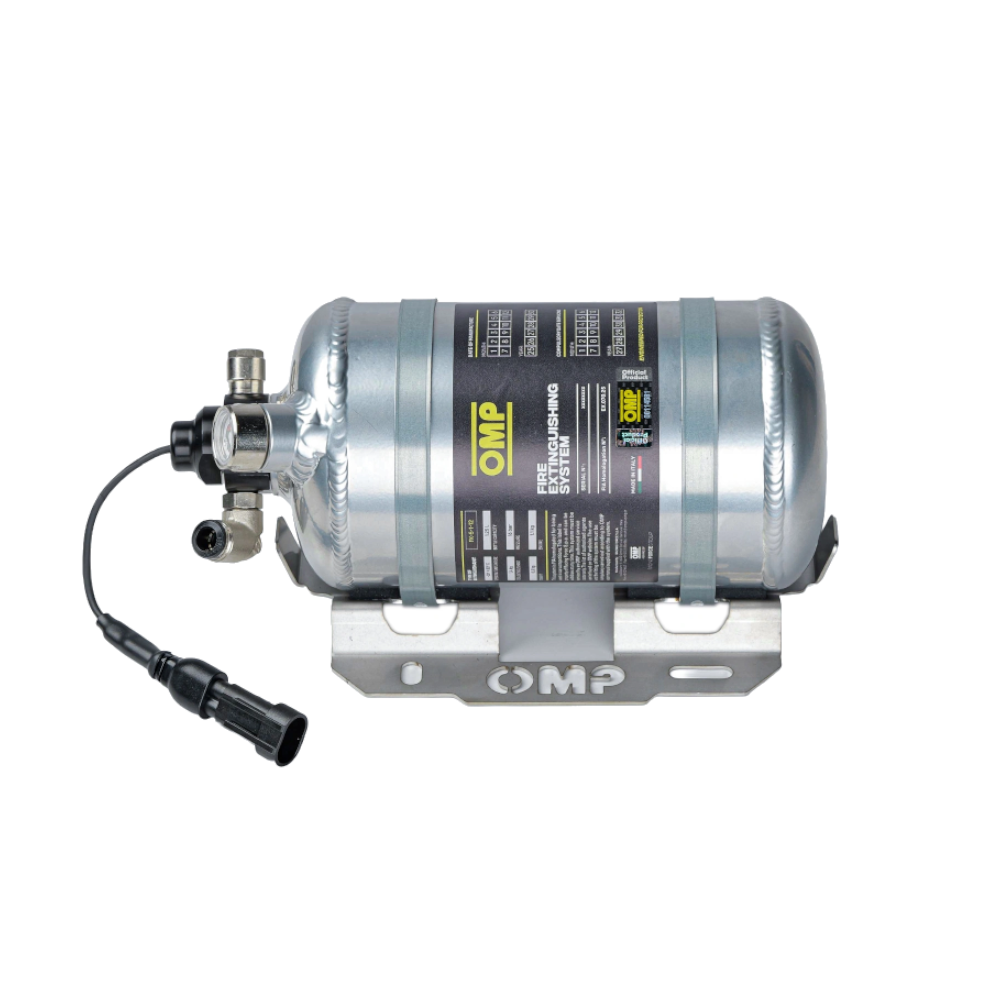

OMP FAL6 1.4kg Single Seater Electrical Fire Extinguisher System

The OMP FAL6 1.4kg Single Seater Electrical Fire Extinguisher System is a compact, electrically operated fire suppression solution developed specifically for single seater race cars, where space, weight, and safety are critical factors. Designed around a lightweight aluminium cylinder and advanced discharge system, it delivers fast and effective fire suppression to both the cockpit and engine bay using 1.4kg of FK-5-1-12 clean agent.

This system is engineered to provide dependable protection without leaving residue or causing damage to sensitive electrical or mechanical components. Its compact size and low overall weight make it ideal for tightly packaged motorsport environments, while the electrically triggered activation ensures consistent and reliable operation in high-pressure situations.

Key Features:

• Compact aluminium bottle with a 100mm diameter and 230mm total length, ideal for restricted cockpit spaces.
• Lightweight system design at approximately 2.05kg, helping minimise overall vehicle weight.
• Uses 1.4kg of FK-5-1-12 clean agent, which is non-toxic, non-conductive, and leaves no residue.
• Six precision atomising nozzles for targeted distribution across the cockpit and engine bay.
• Complete with aluminium tubing and high-quality fittings for secure and reliable installation.
• Electrically activated system with control box, wiring loom, and push-button switches included.
• Supplied mounting brackets and anti-vibration clamps for stable and secure fitment.
• Environmentally considerate extinguishing agent with zero ozone depletion and low global warming potential.
• FIA approved (Technical List 16) for use in open cockpit single seater race cars.

Specifications:

• Bottle dimensions: 196mm length (230mm including firing head) x 100mm diameter
• Total system weight: 2.05kg (±5%)

Supplied as a complete kit, the OMP FAL6 offers a practical and efficient fire safety solution for modern single seater race cars, combining compact design, clean agent technology, and reliable electrical activation.
